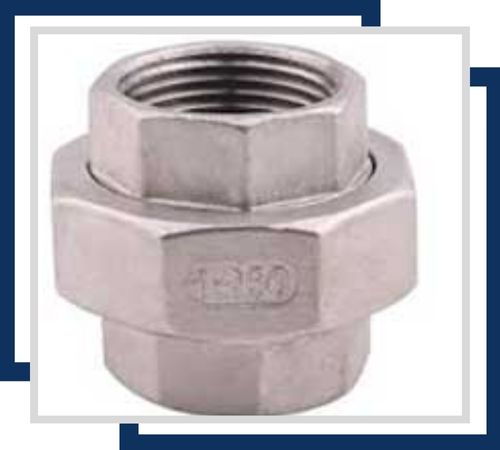

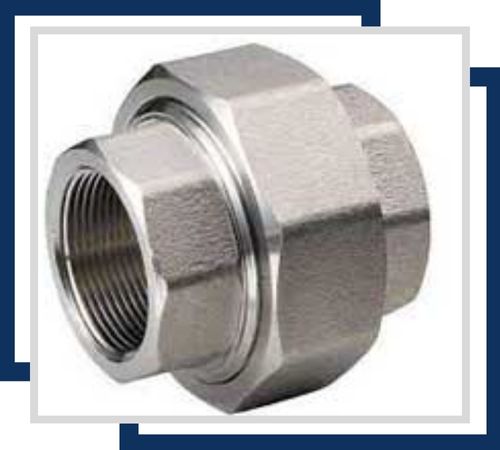

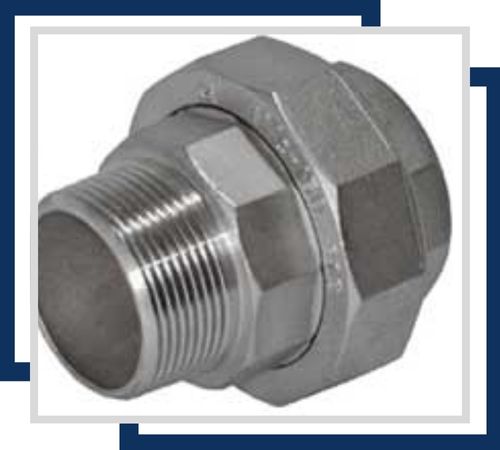

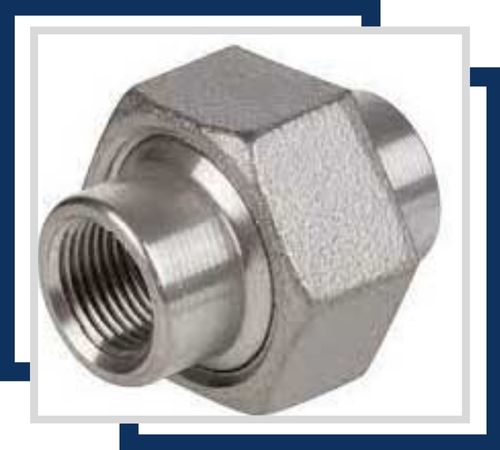

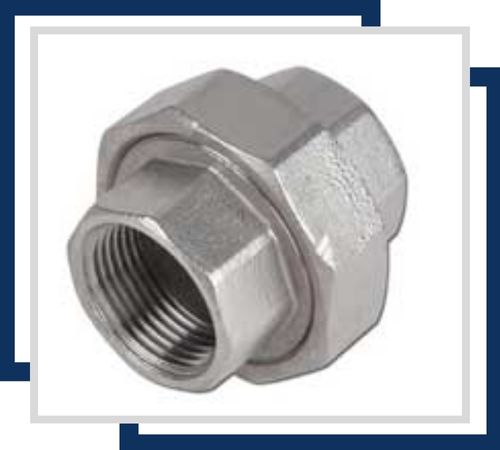

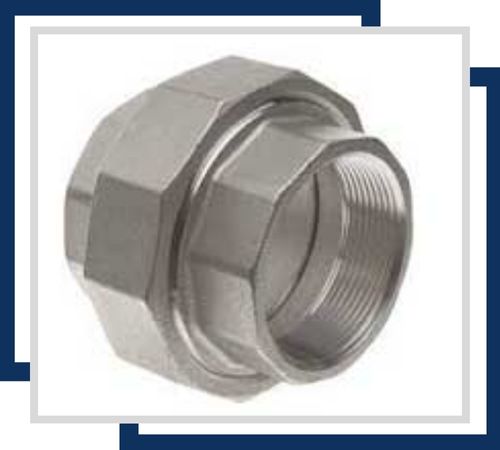

Shashank Stainless, based in Dubai, United Arab Emirates, is a renowned supplier and manufacturer of premium quality stainless steel unions for many areas of industrial applications. These unions have become synonymous with great resistance to the damaging effects of corrosion, oxidation, and thus high temperature; for chemical-processing industries or power generation operations, or marine engineering, they would be excellent. Engineered to enhance strength and durability, our Stainless Steel Unions provide reliable operation even under the harshest conditions. Different sizes and configurations are available while customization to particular project requirements is done. We devote ourselves to providing products that meet the highest standards of quality and reliability.
Among the different grades of stainless steel unions, 304 and 316 possess a lot of excellent properties both for chemicals and also physically. The composition of grade 304 has 18-20% chromium and 8-10.5% nickel where carbon can be up to 0.08%. Grade 316, which is made for high resistance against corrosion, contains 16-18% chromium, 10-14% nickel, and 2-3% molybdenum. Mechanical properties include tensile strength that varies between 520 MPa to 700 MPa and yield strength of 215 MPa for 304 and 290 MPa for 316. Further both the grades feature high elongation (40% min), very good hardness (70 HRB max) and the modulus of elasticity is 200 GPa providing durability and strength in most demanding environments.
| Dimensions | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| Size | 1/8″ NB TO 4″ NB |
| Form | Threaded Union, Forged Threaded Union |
| Pressure Ratings | Up to 20,000 psig (1,378 bar) |
|---|---|
| Temperature Ratings | Up to 1000° F (537° C) |
| Class | 33000 LBS, 6000 LBS, 4500 LBS |
| Type | Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT |
| Types | NPT, ISO/BSP, SAE threads |
| Value Added Services: | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
| Export to | Singapore, Indonesia, Dubai, Brazil, Ukraine, India, Thailand, Korea, Oman, Spain, Canada, USA, Ireland, Iran, Egypt, Saudi Arabia, Peru, etc |
| Production Grades: | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
| Sizes available | 1/16 to 1 in. |
| Main Types | Pipe nipples, adapter and gaskets, reducing bushing and reducers, couplings, elbows, tees, crosses, union ball joints, caps, and plugs |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Ti | Fe | |
| 304 | min. | 18.0 | 8.0 | |||||||||
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | 0.10 | ||||
| 304L | min. | 18.0 | 8.0 | |||||||||
| max. | 0.030 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 12.0 | 0.10 | ||||
| 304H | min. | 0.04 | 18.0 | 8.0 | ||||||||
| max. | 0.010 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | |||||
| SS 310 | 0.015 max | 2 max | 0.015 max | 0.020 max | 0.015 max | 24.00 26.00 | 0.10 max | 19.00 21.00 | 54.7 min | |||
| SS 310S | 0.08 max | 2 max | 1.00 max | 0.045 max | 0.030 max | 24.00 26.00 | 0.75 max | 19.00 21.00 | 53.095 min | |||
| SS 310H | 0.04 0.10 | 2 max | 1.00 max | 0.045 max | 0.030 max | 24.00 26.00 | 19.00 21.00 | 53.885 min | ||||
| 316 | min. | 16.0 | 2.03.0 | 10.0 | ||||||||
| max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | |||||
| 316L | min. | 16.0 | 2.03.0 | 10.0 | ||||||||
| max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | |||||
| 316TI | 0.08 max | 10.00 14.00 | 2.0 max | 0.045 max | 0.030 max | 16.00 18.00 | 0.75 max | 2.00 3.00 | ||||
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 304/ 304L | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 304H | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 40 % |
| 310 / 310S / 310H | 7.9 g/cm3 | 1402 °C (2555 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 40 % |
| 306/ 316H | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
Contact us to get a quick quote for your requirement.
Moreover, test certificates such as MTC as per EN 10204/3.1b, PMI Test Certificate, 100% Radiography Test Report, and Third Party Inspection Certificate are provided by most Shashank Stainless Unions. Such documents act as proof for the quality and reliability of the product to its users regarding high performance and durability. Commitment to seamless and trustworthy experience where these Stainless Steel Unions meet the best standards of quality and compliance.
Stainless Steel Unions typically do not require additional corrosion protection coatings due to their inherent resistance to rust and corrosion. However, coatings may be applied for extreme environments or aesthetic purposes.
Yes, Stainless Steel Unions are fully recyclable. Stainless steel is a sustainable material that can be reused without losing its properties, making it an environmentally friendly choice for various applications.
When selecting Stainless Steel Unions, consider factors like material grade, pressure ratings, size compatibility, corrosion resistance, and the specific application environment to ensure optimal performance and durability.
Stainless Steel Unions are available in various configurations, including threaded, butt-weld, socket-weld, and flanged unions, offering different connection types to suit diverse industrial applications and pressure requirements.
Stainless Steel Unions are now widely used in several industries because they are considered extraordinarily durable and resistant to corrosion, oxidation, and high temperature. Most of these find use in chemical processing plants, power generation facilities, and marine engineering, which necessitate reliable and secure connections. These unions help assemble and disassemble piping systems quickly for maintenance and repairs. They find uses in food processing and pharmaceuticals, besides oil and gas industries, ensuring that joint fittings are leak-proof and tight in fluid and gas handling systems. Hence, their versatility and strength make them the dueling champions for commercial and industrial applications.
