Stainless Steel 17-4 PH Fasteners are composed primarily of iron, chromium (15-17%), nickel (3-5%), and a small amount of copper (3-5%). This alloy combines martensitic stainless steel’s strength with austenitic stainless steel’s corrosion resistance. Key properties include high tensile strength (up to 180 ksi), good fatigue, and excellent corrosion resistance. Advantages include its high strength-to-weight ratio, ease of heat treatment for tailored hardness, and resistance to atmospheric, chemical, and petrochemical environments, making it ideal for aerospace, marine, and chemical processing applications.
| Specifications | ASTM A 193 / ASME SA 193 |
| Standard | DIN, ISO ,JIS ,GB, IS, BS, ASTM and all International Standards |
| Size | M3 – M100 | 3/6″ – 4″ | Custom Sizes |
| Fasteners Length | 3 mm – 200 mm | Custom Sizes |
| Nuts Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Washers Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Head | Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc. |
| Neck type | Hex, Square, Triangular, Oval & Knurled etc. |
| Surface Coating | Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request |
| Manufacturing Process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing. |
| Grade | C | Cb+Ta | Cr | Cu | Fe | Mn | Ni | P | S | Si |
| SS 17-4 PH | 0.07 max | 0.15-0.45 | 15.00-17.50 | 3.00-5.00 | Bal | 1.0 max | 3.0-5.0 | 0.40 max | 0.03 max | 1.0 max |
Contact us to get a quick quote for your requirement.
At Shashank Stainless, we are proud to be the largest supplier, manufacturer, and exporter of Stainless Steel 17-4 PH Fasteners in Dubai, UAE. Our state-of-the-art solutions address all your piping needs. With advanced production facilities in the UAE, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring that stock is readily available to meet your demands.

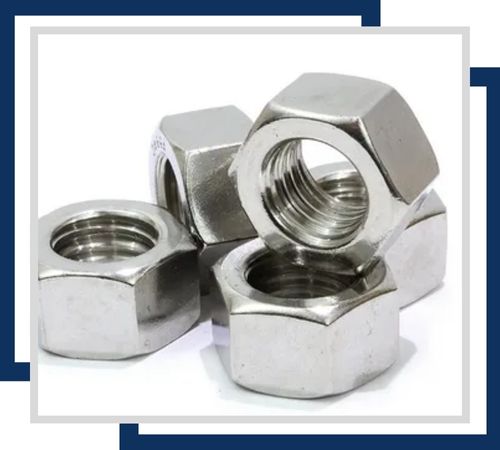

Stainless Steel 17-4 PH Nuts Known for excellent corrosion resistance, Stainless Steel 17-4 PH nuts are typically used in aerospace and industrial applications. They come in various sizes. Usually, the dimensions are M2 to M36 and conform to standard nut sizes.

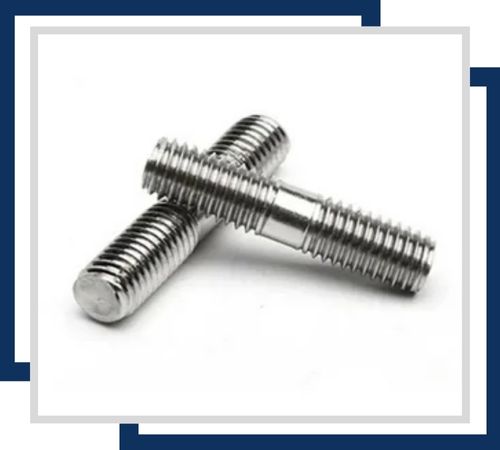

17-4 PH stud bolts are ideal for high-stress environments and offer high corrosion resistance. Depending on application requirements, they are available in sizes ranging from M4 to M30, with lengths varying from 20mm to 1000mm.

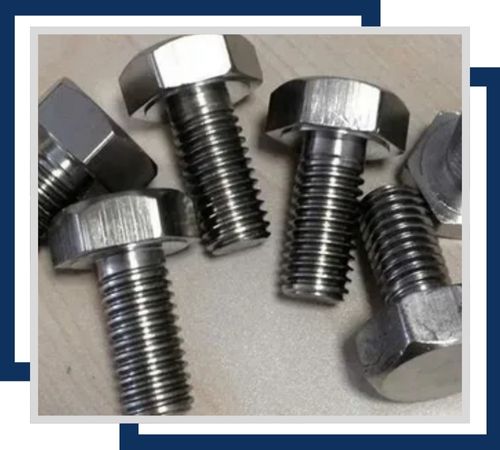

These bolts provide strong corrosion resistance and are commonly used in structural applications. Available in sizes from M5 to M36, with standard lengths ranging from 10mm to 200mm, they meet various industrial and military standards.

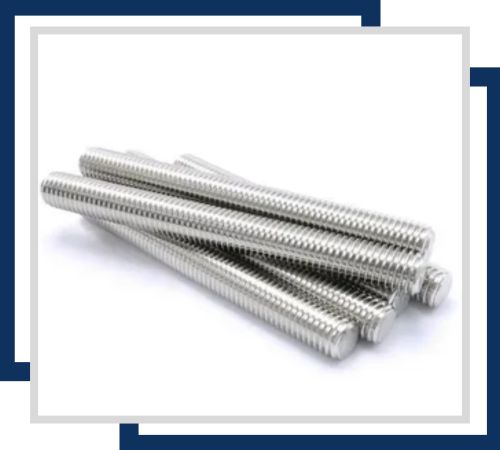

Stainless Steel 17-4 PH threaded rods Known for excellent corrosion resistance, 17-4 PH threaded rods are used in high-strength applications. They are available in diameters from M6 to M36 and lengths from 100mm to 3000mm, suitable for various structural needs.

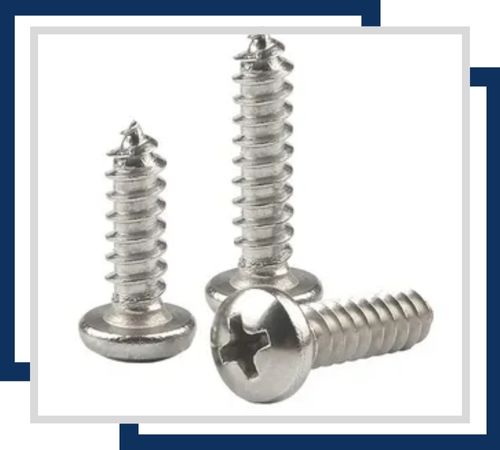

Offering high corrosion resistance, 17-4 PH screws are suitable for harsh environments. They come in sizes from M2 to M16, with lengths from 6mm to 100mm, meeting diverse application standards.

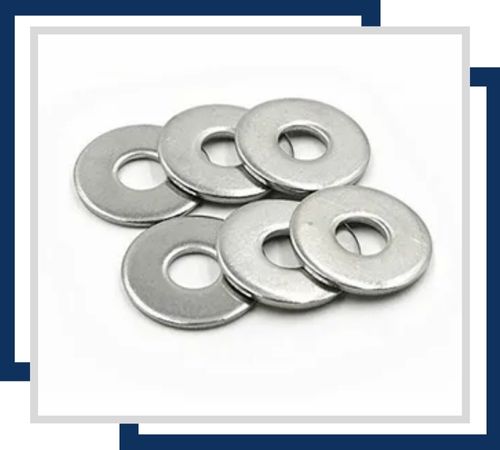

These washers are highly corrosion-resistant, making them ideal for marine and aerospace applications. Available in diameters from M3 to M36, they come in various thicknesses to fit different bolt sizes.
Shashank Stainless is a leading supplier and stockist of high-quality stainless steel 17-4 PH MA fasteners in Dubai, UAE. Our products are widely used in various applications, and we are committed to delivering excellent service, resulting in high customer satisfaction. Our unique finishing techniques further distinguish us in the stainless steel industry. We are dedicated to consistently providing superior products and effectively meeting our customer’s needs.
Stainless Steel 17-4 PH Fasteners are renowned for their high strength, excellent corrosion resistance, and good mechanical properties at elevated temperatures. These fasteners are widely used in aerospace, marine, and chemical processing industries due to their ability to withstand harsh environments and extreme conditions. They are ideal for applications requiring high tensile strength and resistance to stress corrosion cracking, such as in aircraft components, hydraulic systems, and marine equipment. Their versatility makes them suitable for demanding engineering and structural applications.
