Shashank Stainless is one of the well-known manufacturers and suppliers based in Dubai, UAE. We manufacture high-performance metal solutions for different industrial sectors. Engineering in accordance with some of the most prominent international quality standards, our Stainless Steel 310 Fasteners have exceptionally high strength, resistance to temperature loads, and superior protection against corrosion. They are available in a variety of sizes, grades and finishes for industries such as aerospace, chemical processing, marine, and medical applications. Reliability at its best and top-notch quality product. Is the motto we emphasize ensuring the best performance of any product even in the most demanding environments. High pressure or high temperature applications-in short, our stainless steel 310 fasteners are the best choice for durability and efficient functioning.
Stainless steel 310 fasteners are made of 24.00 – 26.00% chromium and 19.00 – 21.00% nickel, providing excellent oxidation and high-temperature resistance. Special characteristics include durability, corrosion resistance and the ability to withstand temperatures up to 1150° C (2100°F) mouth. These packaging materials are ideal for use in hot environments such as ovens and heating appliances. Advantages include good mechanical strength, thermal fatigue and oxidation resistance, and ease of fabrication, making it suitable for industrial and structural applications.
| Specifications | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
|---|---|
| Fasteners size | Bolt / Screw Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Nuts Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Washers Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Machine Screws Size : M1.6 – M12 Self Tapping Screw Size : No.2 – No. 14 |
| Fasteners Length | 3 mm to 200 mm |
| Fastener Threads | UNF, BSW, BSF, METRIC, UNC or as required |
| Standard of Stainless Steel Fasteners | DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard SS Stud Bolt length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 SS Hex nuts |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Surface Coating | Ptfe Coated Stainless Steel Fasteners Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Fasteners Finishing | Stainless steel : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Stainless Steel, Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide. |
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
|
SS 310 |
0.015 max |
2.0 max |
0.15 max |
0.020 max |
0.015 max |
24.00 – 26.00 |
0.10 max |
19.00 – 21.00 |
54.7 min |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 310 | 515 | 205 | 40 | 95 | 217 |
Contact us to get a quick quote for your requirement.

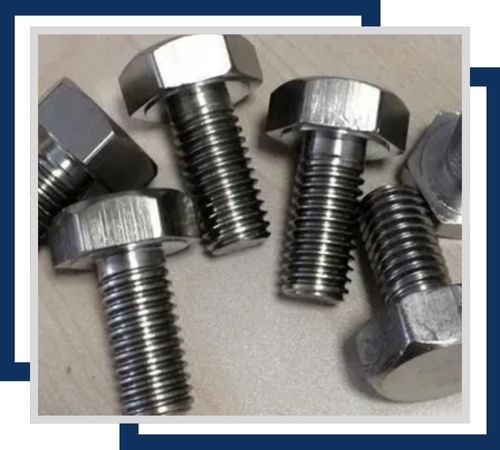

Stainless Steel 310 Bolts offer excellent corrosion resistance in high-temperature environments. Available in various sizes from M3 to M30 and lengths from 10mm to 300mm, they are ideal for structural and high-heat applications.

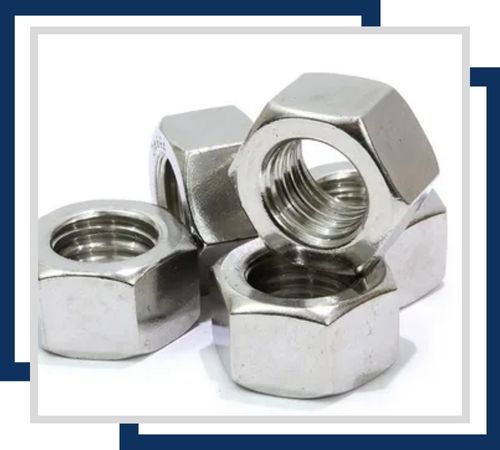

Stainless Steel 310 Nuts provide superior corrosion resistance and high-temperature stability. They come in sizes ranging from M3 to M30, with standard hex dimensions ensuring compatibility with bolts and screws in demanding environments.

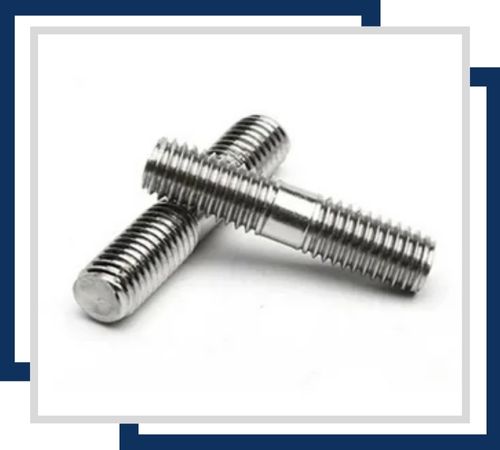

Stainless Steel 310 Stud Bolts are known for their exceptional resistance to oxidation and corrosion at elevated temperatures. Typically available in sizes from M6 to M36 and lengths from 20mm to 300mm, they are used in heavy-duty applications.

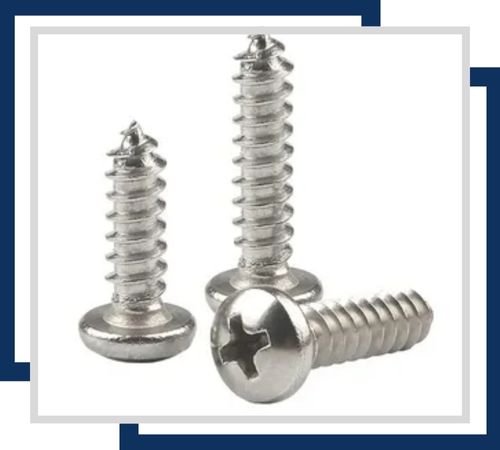

Stainless Steel 310 screws offer outstanding resistance to corrosion and heat. They are available in sizes from M3 to M20 and lengths ranging from 10mm to 200mm, suitable for use in high-temperature and corrosive environments.

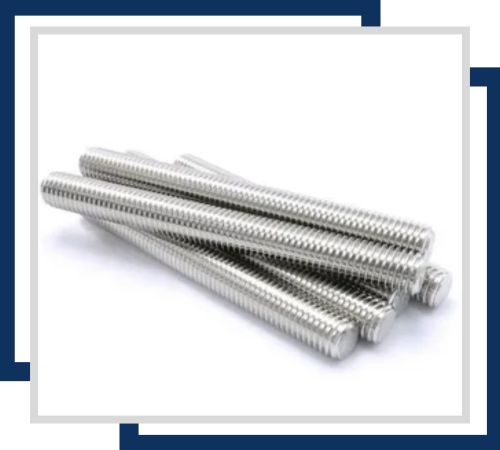

Stainless Steel 310 threaded rods provide excellent durability and resistance to high temperatures and corrosion. They are available in diameters from M6 to M36 and lengths up to 3000mm, making them versatile for various industrial applications.

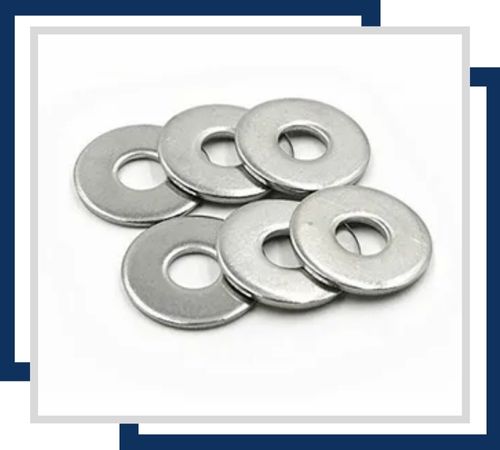

Stainless Steel 310 washers offer superior corrosion and heat resistance, ensuring long-term performance. Sizes range from M3 to M30, with thicknesses typically between 0.5mm and 10mm, suitable for providing stability and load distribution in harsh environments.
We are proud to present a world-class range of SS 310 Fasteners designed to satisfy specific customer size requirements. From the very first step, our commitment to quality is further demonstrated by rigorous end-product testing to industry standards. End-product testing includes 100% radiography, strength tests, macro/micro tests, material analysis, third-party inspections, intergranular corrosion tests, chemical analyses, and positive material identification (PMI). In this way, we assure that our fasteners will be up to the mark in terms of long life, performance, and complete conformity with all industry requirements.
Stainless Steel 310 fasteners are used in high-temperature applications due to their excellent heat and oxidation resistance. They are ideal for furnace parts, heat exchangers and petrochemical processing equipment. They are also suitable for industrial boilers, gas turbines and other environments with elevated temperatures and corrosive conditions. Their high chromium and nickel content enhances their resistance to scaling and oxidation making them a preferred choice for applications involving extreme heat and corrosive substances.
