A stainless steel gate valve is a type of valve used to control flow by raising or lowering a gate in the valve body. When the door is fully lifted, the flow is fully open; They close completely upon landing, providing a tight seal. These valves are made of stainless steel, which is known for its durability, durability and corrosion resistance. Common elements include steel, chromium (at least 10.5%) and nickel, in common concentrations such as 304 and 316. Chromium provides excellent corrosion resistance, while nickel provides stability and stability high temperature stability is increased, making these valves suitable for complex materials such as 304 and 316. Oil gas, Applications such as water treatment and chemical processing.
| Size | 1/2″ to 3″ |
|---|---|
| Structure | Bolted Body, Integral Seat |
| Trim | 316 Trim |
| Pressure Raiting | 0 to 13 BAR |
| Connection | Flanged Flat Face |
| Applicable temperature | -196 – 593 Deg. C. |
| Material | C | Si | Mn | P | S | Cr | Ni | N |
|---|---|---|---|---|---|---|---|---|
| Stainless Steel | 0.080 max | 0.75 max | 2.00 max | 0.045 max | 0.030 max | 18.00-20.00 | 8.00-10.50 | 0.100 max |
| Material | Yield Strength | Tensile Strength | Elongation (%) | Reduction of Area (%) | Hardness Max | |
|---|---|---|---|---|---|---|
| Min (Mpa) | Min (Mpa) | Min | Min (50mm) | HB | HR B | |
| Stainless Steel | 170 | 458 | 30 | 50 | 201* | 92* |
Contact us to get a quick quote for your requirement.
At Shashank Stainless, we are proud to be the largest supplier, manufacturer, and exporter of Stainless Steel Gate Valves in Dubai, UAE. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the UAE, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

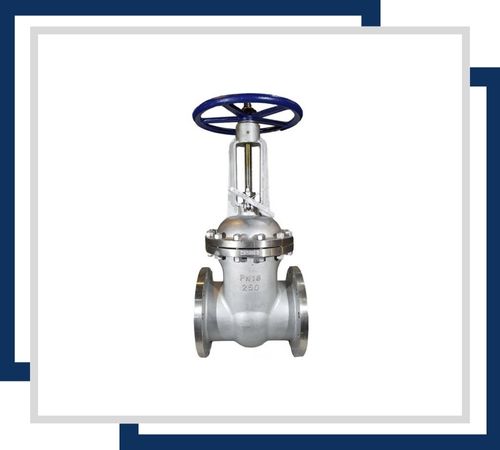

The stainless steel soft seated gate valve, available in sizes from 1″ to 12″, provides excellent corrosion resistance and tight sealing. Ideal for low-pressure applications requiring a reliable, leak-proof closure.
This resilient seated gate valve, available in sizes from 2″ to 24″, offers superior corrosion resistance and a tight, flexible seal. Perfect for water and wastewater applications where durability and performance are essential.

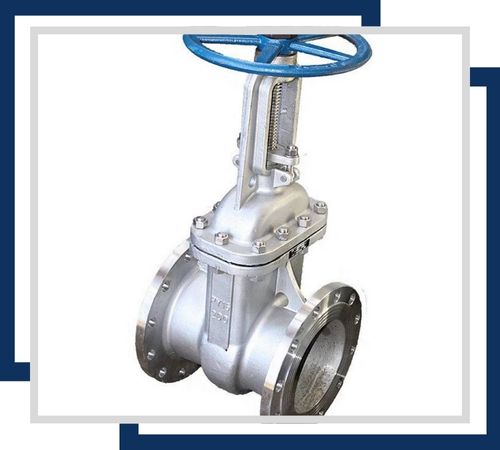

The stainless steel bellow sealed gate valve, ranging from 1/2″ to 12″, provides high corrosion resistance and leak-proof performance. Ideal for applications requiring zero stem leakage, such as chemical and pharmaceutical industries.

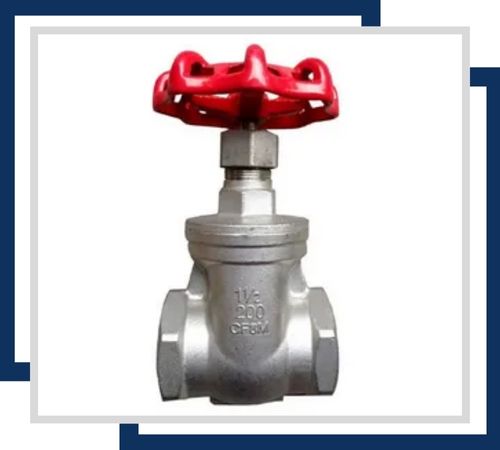

Stainless steel sluice gate valves, available in sizes from 2″ to 24″, offer excellent corrosion resistance and durability. Designed for controlling water flow in dams, reservoirs, and water treatment plants.

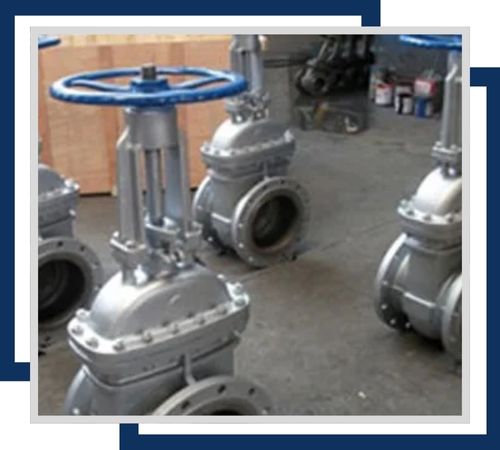

This low pressure gate valve, sized from 1″ to 12″, combines stainless steel and cast steel for excellent corrosion resistance and durability. Suitable for low-pressure applications in various industrial environments.

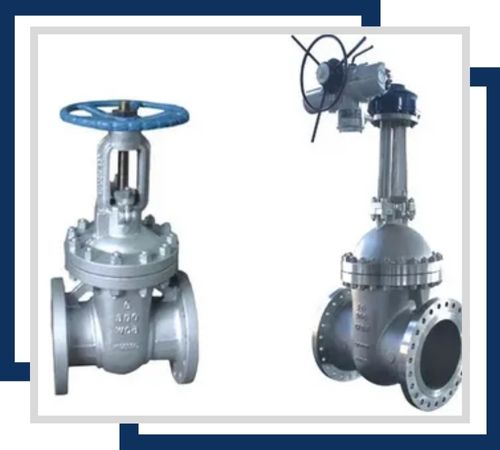

Stainless steel gate valves, available in sizes from 1/2″ to 24″, offer robust corrosion resistance and reliable flow control. Ideal for use in chemical, petrochemical, and water treatment industries where durability is crucial.
Shashank Stainless is a leading supplier, and stockist of high-quality Stainless Steel Gate Valves in Dubai, UAE. Our products are widely used in various applications, and we are committed to delivering excellent service, resulting in high customer satisfaction. Our unique finishing techniques further distinguish us in the stainless steel industry. We are dedicated to consistently providing superior products and effectively meeting our customer’s needs.
Stainless steel gate valves are critical in applications that require strict flow control and reliable isolation. It is commonly used in the oil and gas industry to maintain high-pressure pipelines and prevent leaks. In water treatment plants, these valves are necessary to control water flow and to isolate parts of the system for maintenance. It is also used in the chemical industry to handle strong water and corrosive agents in hard seals. Also, stainless steel gate pipes are used in power generation and industrial construction for steam and water flow control, where their durability and resistance to temperature and pressure increase is the main thing
