Shashank Stainless is a top manufacturer and supplier of high-grade stainless steel products and has its base in Dubai, UAE. The company runs mainly on stainless steel 309 bars and offers great durability, corrosion resistance, and excellent performance in various industries. We are renowned for delivering top-grade materials in all our products, each conforming to strict international standards. It meets various market needs concerning stainless steel construction, engineering, automotive, and other sectors in the UAE and abroad, with due regard for customer satisfaction and timely delivery. An assurance from Shashank Stainless could not be matched for quality and service.
Stainless Steel 309 is Austenitic chromium-nickel steel that has high oxidation and corrosion resistance at elevated temperatures. Its chemical composition typically consists of 22-24% chromium and 12-15% nickel, while manganese, silicon, and carbon levels are trace. The composition qualifies the alloy due to its application in furnace, heat exchanger, and exhaust systems in high-temperature ranges. Excellent strength and toughness with good weldability and formability characterize its mechanical properties. Tensile strength ranges between 515 to 700 MPa. Yield strength ranges between 205 and 500 MPa. Resistance to scaling and corrosion for environments that are moderately aggressive.
| Specifications | ASTM A276, ASTM A479 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 309 Round Bars | Outside Diameter in the range of 4mm to 500mm |
| SS 309 Bright Bars | Outside Diameter in the range of 4mm to 100mm |
| SS 309 Hex Bars | 18mm – 57mm (11/16″ to 2-3/4″) |
| SS 309 Square Bars | 18mm – 47mm (11/16″ to 1-3/4″) |
| SS 309 Flat Bars | 1/2” to 10” in thickness range of 2mm to 150mm, Custom Size Stainless Steel Flats available |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
Element | Content (%) |
Iron, Fe | 60 |
Chromium, Cr | 23 |
Nickel, Ni | 14 |
Manganese, Mn | 2 |
Silicon, Si | 1 |
Carbon, C | 0.20 |
Phosphorous, P | 0.045 |
Sulfur, S | 0.030 |
Properties | Metric | Imperial |
Tensile strength | 620 MPa | 89900 psi |
Yield strength (@ strain 0.200%) | 310 MPa | 45000 psi |
Izod impact | 120 – 165 J | 88.5 – 122 ft-lb |
Shear modulus (typical for steel) | 77 GPa | 11200 ksi |
Elastic modulus | 200 GPa | 29008 ksi |
Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
Elongation at break (in 50 mm) | 45% | 45% |
Hardness, Brinell | 147 | 147 |
Hardness, Rockwell B | 85 | 85 |
Hardness, Vickers (converted from Rockwell B hardness) | 169 | 169 |
Contact us to get a quick quote for your requirement.
We carries out rigorous performance tests on complete batches of Stainless Steel 309 Bars with regards to chemical composition, mechanical properties, and the degree of corrosion resistance. Our products are certified by recognized authorities regarding conformity to international standards for ensuring reliability and consistency with every delivery.

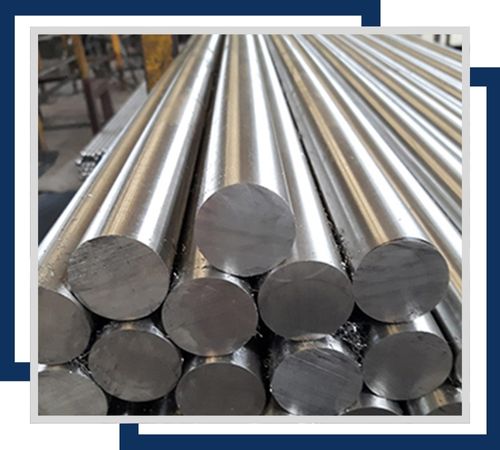

Stainless Steel 309 Round Bars offer excellent corrosion resistance and are available in diameters ranging from 6 mm to 200 mm. Ideal for high-temperature applications and structural uses, they ensure durability and strength.

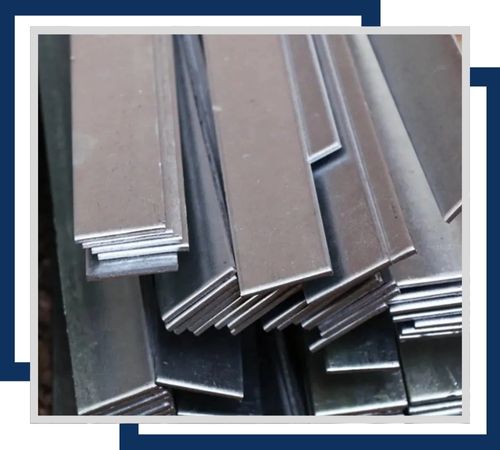

Featuring good corrosion resistance, Stainless Steel 309 Flat Bars come in widths from 20 mm to 150 mm and thicknesses from 5 mm to 50 mm. These bars are used in construction, manufacturing, and industrial applications for their thermal stability.

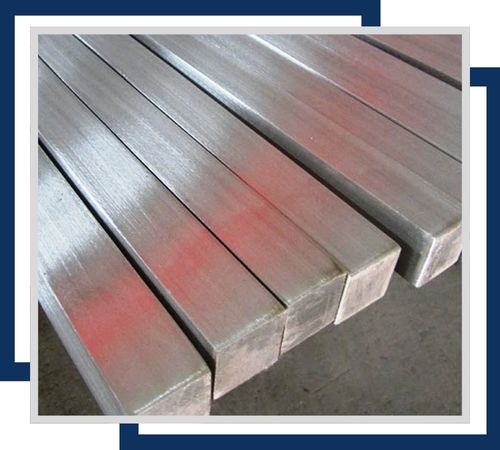

Known for their corrosion resistance, Stainless Steel 309 Square Bars are available in sizes from 10 mm to 100 mm. They are utilized in various structural and industrial applications where strength and heat resistance are required.

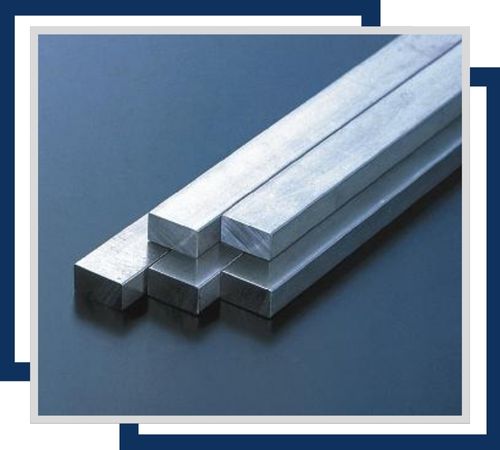

Stainless Steel 309 Rectangular Bars provide corrosion resistance and are offered in dimensions like 20 mm x 10 mm to 150 mm x 50 mm. These bars are suitable for use in high-temperature environments and structural applications.

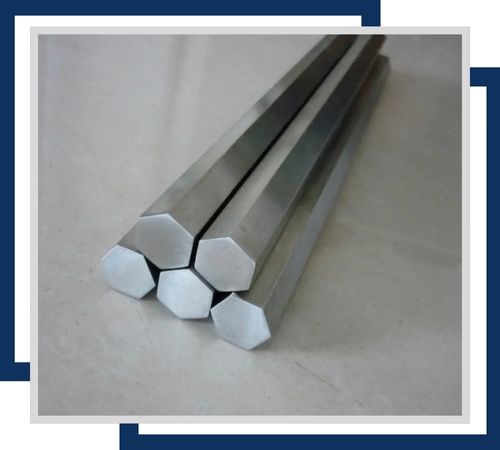

Offering corrosion resistance, Stainless Steel 309 Hexagonal Bars are available in sizes ranging from 6 mm to 50 mm across flats. They are often used in machining, fabrication, and for applications requiring heat resistance.

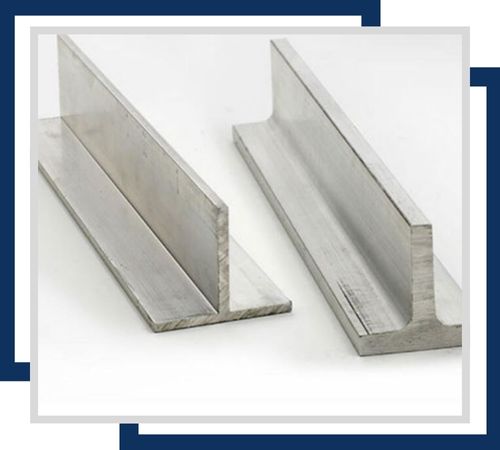

Stainless Steel 309 T-Bars are known for their high-temperature resistance and oxidation resistance. Available in sizes ranging from 15 mm x 15 mm x 6 mm to 100 mm x 100 mm x 12 mm, they are used in industrial applications such as heat exchangers and furnace components, providing durability and strength in extreme conditions.
Stainless Steel 309 bars are used more commonly in high-temperature applications based on their excellence in heat resistance and oxidation resistance. Used in various industries including aerospace, petrochemical, and power-generating industries, stainless steel 309 is excellent for extreme heat components such as furnace parts, kiln linings, and heat exchangers. Its higher strength makes it excellent for manufacturing structural parts, industrially used equipment, and welding rods. Stainless Steel 309 bars are favored for their very tough characteristics in harsh environments and the ability to maintain performance in high-temperature conditions.
