Shashank Stainless is among the top steel manufacturers and stainless steel suppliers in Dubai, UAE. Reputed for maintaining excellence, they specialize in different stainless steel offerings to cater for various industrial uses. Among all the stainless steel products, there are the extraordinary Stainless Steel 202 Flanges, which, due to extreme durability, and resistance to rust, prove really cost-effective to the industries where they are needed. These flanges are widely used in chemical processing, construction, and marine applications. Shashank Stainless has established itself as a trusted name in the global stainless steel market with precision engineering, timely delivery, and customer satisfaction.
Basic composition, by weight, of stainless steel 202 flanges is iron with about 17-19% Cr, 4-6% Ni, and 0.15-0.25% C, in addition to small amounts of manganese, silicon, and phosphorus. The steel composition offers strong resistance against oxidation and corrosion for a number of industrial applications. Some mechanical properties are tensile strength about 500-700 MPa, yield strength at about 215-450 MPa, and elongation 40-50%. Stainless Steel 202 is also a good formability, weldability, and moderate resistance to heat. Its usage is quite prevalent in the food processing, chemical, and construction industries.
| ASME/ANSI B16.5 | Welding Neck Flange, Slipon Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange |
| Pressure Class | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B16.47 | Welding Neck Flange, Blind Flange (Series A & B) |
| Pressure Class | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | (Orifice Flanges) Welding Neck Flange, Slipon Flange, Threaded Flange |
| Pressure Class | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Welding Flange (111/134), Hubbed Slipon Flange (112), Hubbed Threaded Flange (113), Lapped Pipe End Flange (133), Plate Flange (101), Loose Plate Flange (102), Loose Plate with Weld-neck Flange (104), Blank Flange (105) |
| Pressure Class | PN 2.5 to PN 100 |
| Grade 202 | C | Mn | Si | P | S | Cr | Ni | N |
| max. | 0.15 | 7.50-10 | 1 | 0.060 | 0.030 | 17- 19 | 4-6 | 0.25 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min |
| 202 | 515 | 275 | 40 |
Contact us to get a quick quote for your requirement.
Testing and certification of all Shashank Stainless Flanges of Stainless Steel 202 will be done at all levels so that the material will be completely tested for performance and quality. The flange is tested as per international standards for mechanical, chemical, and dimensional inspections. With every order, CoC and MTR are provided with traceability against industry requirements. In response to specific requirements of a project, PMI, hardness tests, and other kinds of testing may be requested on an additional testing basis.

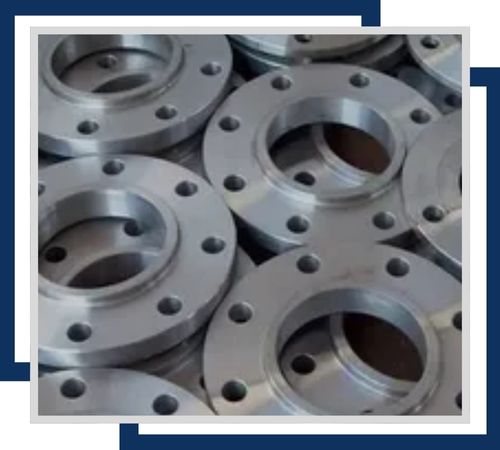

Stainless Steel 202 Threaded Flanges provide a secure, leak-proof connection with easy installation and removal. Ideal for applications requiring high corrosion resistance, they offer durability and strength in various industrial settings.

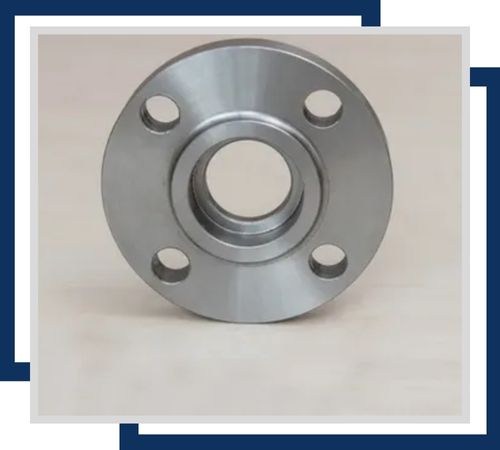

SS Socket 202 Weld Flanges feature a recessed socket for easy welding, providing a strong, corrosion-resistant connection. Ideal for high-pressure applications, they offer durability and reliable performance in challenging environments.

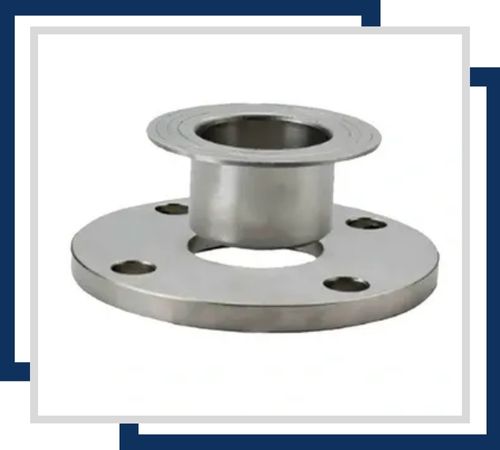

Stainless Steel 202 Lap Joint Flanges offer flexibility with easy alignment and disassembly. Their corrosion-resistant properties make them ideal for systems requiring frequent maintenance, ensuring durable and reliable connections.
Stainless steel 202 flanges are often used in industries because of their excellent corrosion resistance, strength, and affordability. Such types of flanges are widely found for use in a pipeline for connecting, redirecting, or sealing application purposes in chemical processing, food processing, and petrochemical industries. They are suitable to be used in mild to moderately corrosive conditions. Stainless Steel 202 Flanges are also used in construction projects, automotive exhaust systems, and water treatment plants. They have good formability and weldability and are best suited for low-cost applications that require durability and reliability, especially in non-critical or interior environments.
