Shashank Stainless is a leading manufacturer and supplier of high-quality stainless steel products in Dubai, UAE, with an excellent reputation for quality. Their product list encompasses the whole range of stainless steel flanges. For example, their Stainless Steel 304 Flanges are renowned for their corrosion resistance, durability, and versatility in almost every industry. Shashank Stainless always strives for superior craftsmanship in pursuit of total customer satisfaction, and they promise that all goods supplied meet international quality standards. Their expert team delivers tailored solutions to meet the specific needs of their clients, making them a trusted choice for stainless steel flanges and other related products in the UAE.
Stainless Steel 304 Flanges are austenitic stainless steel that consists of the composition, mostly for 18-20% chromium and 8-12% nickel, along with smaller contents of manganese, silicon, and carbon. Such composition offers excellent corrosion resistance, especially for atmospheric, chemical, and food-related corrosion. Their mechanical properties consist of tensile strength: 520 MPa, yield strength: 205 MPa, and elongation in 50mm of 40%. Good weldability, formability, and resistance to impact at elevated and low temperatures make this material very effective. Stainless Steel 304 Flanges are also highly used in various industries, especially food processing, chemicals, and construction, as these flanges resist oxidation and ensure longer durability.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ANSI/ASME B16.5, B 16.47 A & B, B16.48, BS4504, BS 10, EN-1092, DIN |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class/Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
Shashank Stainless follows high-quality standards for its Stainless Steel 304 Flanges. Every flange is thoroughly tested for dimensional checks, visual inspections, and non-destructive testing such as ultrasonic and magnetic particle tests. In addition to that, the flanges are even submitted to mechanical testing in terms of tensile, hardness, and impact tests to confirm their strength and durability. All the products have the relevant certificates. They also carry material test reports (MTRs) and meet international standards. This will provide reliable performance in various industrial applications.

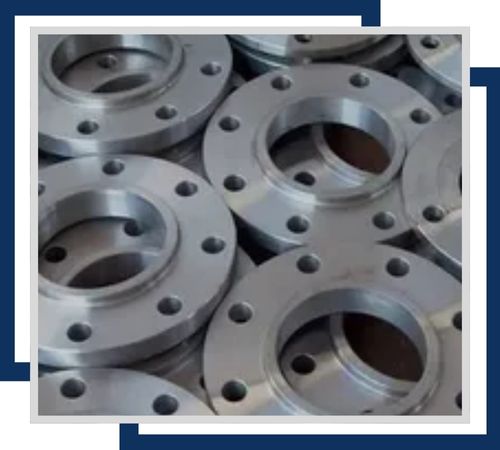

SS 304 long weld neck flanges are designed for high-stress applications, featuring a long tapered neck that provides a strong, continuous weld connection. They offer excellent strength and resistance to leakage.

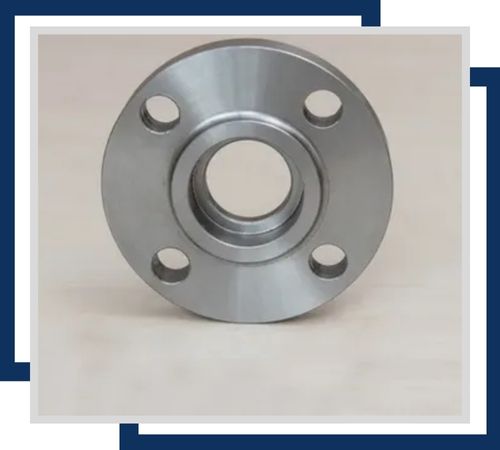

SS 304 lap joint flanges are versatile components designed for ease of assembly and disassembly. They feature a loose fit, allowing for easy alignment and maintenance, with excellent resistance to corrosion.
SS 304 reducing flanges are used to connect pipes of different diameters, providing a smooth transition between sizes. They ensure a secure, leak-proof joint while offering strong corrosion resistance and durability.
Stainless Steel 304 flanges are commonly used in the food processing, chemical, petrochemical, pharmaceutical, and water treatment industries. The use of these flanges is also very common due to their high corrosion resistance and durability. Due to their properties, they find excellent applications at high temperatures or in environments that are exposed to corrosive chemicals. Stainless Steel 304 flanges find application in heating, ventilation, and air-conditioning systems. They are employed in marine surroundings and pipelines with the need to maintain sanitation or hygiene. Given their strength as well as extreme condition resistance, they are preferred for many of the industrial procedures.
