Shashank Stainless is one of the prominent manufacturers and suppliers from Dubai, UAE, and offers high-quality stainless steel products. With an assurance of quality, they provide an entire range of stainless steel flanges, among which Stainless Steel 316 Flanges are very popular, which are widely known for its great resistance to corrosion, which is ideal for the industries involved with harsh environment conditions. Shashank Stainless is known for its precision manufacturing, ensuring that each product meets the highest industry standards. Be it construction, engineering, or chemical industries, Shashank Stainless is the choice for durable and reliable stainless steel solutions.
Stainless Steel 316 Flanges are a combination of iron, chromium content of 16-18%, nickel 10-14%, and molybdenum 2-3% to provide the material with superior corrosion resistance properties. The alloy contains molybdenum content that allows resistance to pitting and crevice corrosion under more aggressive environments. The flanges have high tensile strength, ranging between 515-690 MPa and yield strength is 205 MPa along with excellent ductility. The material has a high melting point of around 1375°C and excellent weldability plus formability, which makes it very appropriate for any chemical processing, marine, or high-temperature usage.
| Specifications | ASTM A182 / ASME SA182 |
| Size | 1/8″ NB TO 48″ NB |
| Standards | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Grades | S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| SS | 316 |
| Ni | 10 – 14 |
| N | 0.10 max |
| Cr | 16 – 18 |
| C | 0.08 max |
| Si | 0.75 max |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.030 max |
| Mo | 2.00 – 3.00 |
| Grade | 316 |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 40 |
| Hardness | |
| Rockwell B (HR B) max | 95 |
| Brinell (HB) max | 217 |
Contact us to get a quick quote for your requirement.
We offers the best quality Stainless Steel 316 Flanges Shashank Stainless,which has undergone intense testing to produce top quality and performance. The flange is thoroughly tested for meeting international standards and specifications. Products supplied by us are certified by recognized authorities for traceability and reliability in each batch. With modern technology and strict quality control, we ensure durability, corrosion resistance, and good mechanical properties. Shashank Stainless stands by the delivery of flanges with the highest level of industry standards in functionality and safety.

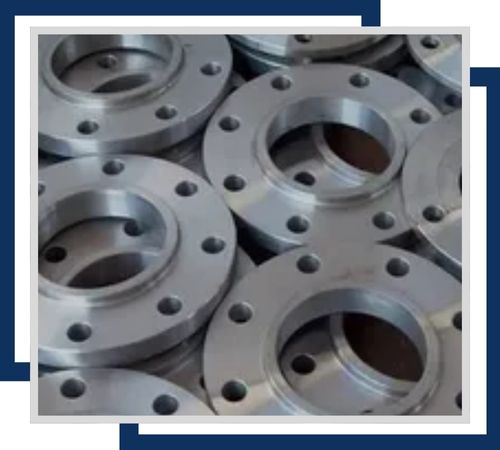

Stainless 316 Steel Threaded Flanges are designed for systems that require quick assembly and disassembly. They come in sizes ranging from 1/2″ to 24″. The 316 stainless steel construction provides excellent corrosion resistance, ideal for plumbing and water treatment applications.

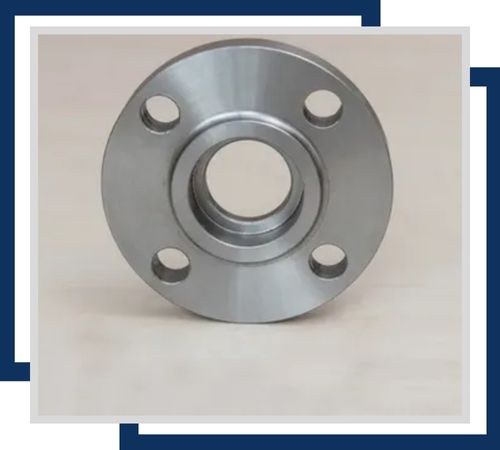

SS 316 Socket Weld Flanges are stainless steel fittings that allow pipes to be inserted into a recessed area before welding. They provide strong, leak-proof connections for small-diameter, high-pressure applications.

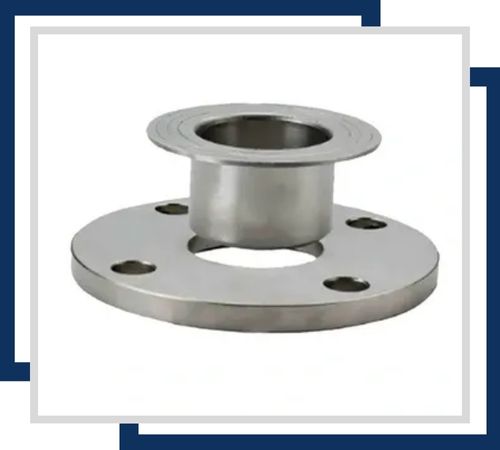

Stainless 316 Steel Lap Joint Flanges are used with stub end fittings and are suitable for systems requiring frequent dismantling. These flanges range in sizes from 1/2″ to 24″. The 316 stainless steel provides exceptional corrosion resistance, making them ideal for use in corrosive environments
Stainless Steel 316 flanges are widely used in industries that demand high corrosion resistance, especially in marine, chemical, and pharmaceutical sectors. Due to the content of molybdenum, it shows excellent resistance against pitting and crevice corrosion, so its applications are mostly associated with seawater, chloride solutions, and acidic environments. Examples of its uses include pipeline systems, water treatment plants, heat exchangers, and food processing equipment. This means that 316 stainless steel also offers high strength and toughness and can be used in high-pressure systems and extreme temperatures. Its flanges guarantee leak-tight connections, hence making safety and efficiency in operations possible in the critical infrastructure.
