Shashank Stainless is one of the major stainless steel product manufacturing and supplying companies based in Dubai, UAE. The company commits to excellence, offering an entire range of stainless steel flanges that includes highly durable Stainless Steel 316Ti Flanges. The product, being very good in corrosion resistance and having a high-temperature strength, finds extensive application in chemical processing, petrochemical, and marine. Shashank Stainless has strict international standards in all their products and ensures reliable solutions for diverse applications. Their commitment to customer satisfaction and industry expertise has made them one of the trusted names in the stainless steel market.
Stainless Steel 316Ti Flanges is an austenitic stainless steel alloy titanium stabilized for providing excellent resistance against intergranular corrosion, specially in the weld affected zones. It contains about 16-18% Cr, 10-14% Ni, 2-3% Mo and trace amount of Ti (0.5-1.0%). Titanium ensures that carbon gets stabilized, resulting in reduced precipitation of carbide. The excellent resistance of this alloy against pitting, crevice corrosion and general corrosion has been noticed. The mechanical properties include tensile strength of 520-700 MPa, yield strength of 205 MPa, and elongation of 40%, which makes the alloy suitable for high-temperature applications such as flanges in chemical, marine, and petrochemical industries.
| Specifications | ASTM A182 / ASME SA182 |
| Size | 1/8″ NB TO 48″ NB |
| Standards | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Grades | S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| ELEMENT | MIN | MAX |
|---|---|---|
| C | – | 0.08 |
| Si | – | 0.75 |
| Mn | – | 2 |
| P | – | 0.45 |
| S | – | 0.03 |
| Cr | 16 | 18 |
| Mo | 2 | 3 |
| N | – | 0.1 |
| Fe | Balance | |
| Ni | 10 | 14 |
| Ti | 5x%(C+N) | |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We offers the best quality Stainless Steel 30TI flanges of superior quality test for best products and performance at an international standards level with due testing and full specification. Being a certified supplier, we certify every batch based on traceable documents. To make the modern products with no corrosion, robust, and quality mechanical properties to give you extra value, we used the modern world’s technology at a stringent and tight quality-control measure. Shashank Stainless commits to deliver the highest level of flanges that could ensure functionality and safety.

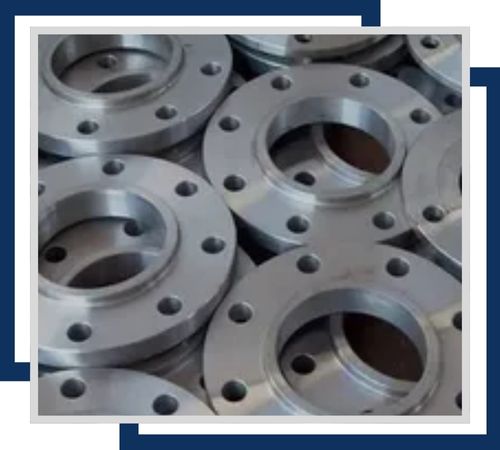

Featuring internal threads for easy attachment to pipes with matching threads, these flanges are typically available from 1/2″ to 6″. Their titanium content enhances corrosion resistance, particularly in aggressive chemical environments

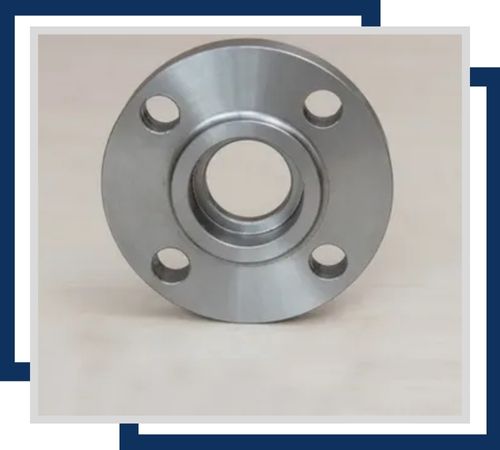

Designed for high-pressure systems, these flanges are inserted into a socket and welded in place. They come in sizes from 1″ to 24″ and offer robust corrosion resistance due to the 316Ti alloy’s resistance to oxidation and chloride stress.

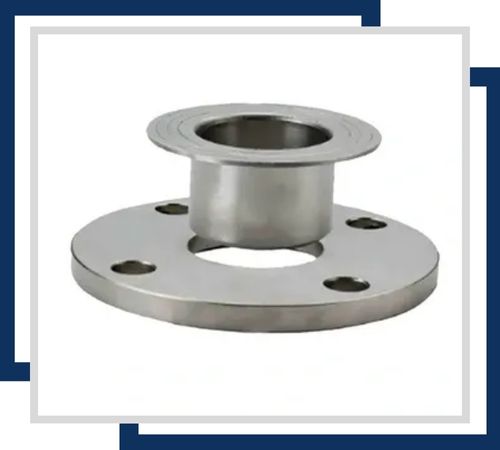

These flanges are used with a loose backing flange and provide a smooth, corrosion-resistant surface for easy alignment and maintenance. They are available in sizes from 1″ to 24″ and are highly resistant to rust and corrosion, suitable for various industries.
Stainless Steel 316Ti flanges are used where corrosion resistance is to be achieved and strength is desired at high temperature. In the heat-treated conditions, resistance against sensitization and grain boundary corrosion is increased. Thus, such flanges can be used for service in severe environment. Such industries include chemical processing, petrochemical, and pharmaceutical where these are being used mainly in systems involving acids, chlorine, and seawater. Thirdly, Stainless Steel 316Ti flanges are also used in power plants, food processing, and marine environments because of their capability of withstanding extreme conditions and ensuring reliable sealing under high-pressure operations.
