Shashank Stainless a Dubai UAE based leading manufacturers and suppliers is known to provide high-class stainless steel-based products. With perfect excellence and accuracy. We brings comprehensive stainless steel solution for industries based on the wide category of Stainless Steel 347H Flanges to the market that are resistant to oxidation and used in elevated-temperature applications under aggressive chemicals conditions. We ensure that all its products meet stringent industry standards and provide customers with reliable and cost-effective solutions for their piping and flanging needs.
Stainless Steel 347H Flanges is a high-carbon version of 347. It has strength at elevated temperatures. Its composition includes iron, chromium (17-19%), nickel (9-13%), columbium (niobium) and tantalum additions to enhance corrosion resistance and stabilize the structure. It has excellent resistance to intergranular corrosion and can withstand temperatures up to 900°C (1652°F). The mechanical properties include a tensile strength of 515-700 MPa, yield strength of 205 MPa, and elongation of 40-50%. It is ideal for chemical as well as power plant applications because of its high temperature stability and resistance to carbide precipitation. It is best used for flanges in a high-stress environment.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class/Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Grade | C | Mn | Si | P | S | Cr | Cb | Ni | Fe |
| 347H | 0.08 | 2.0 | 1.0 | 0.045 | 0.030 | 17.00 – 20.00 | 10xC – 1.10 | 9.00 – 13.00 | 62.74 min |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 347H | 515 | 205 | 35 | 92 | 201 |
Contact us to get a quick quote for your requirement.

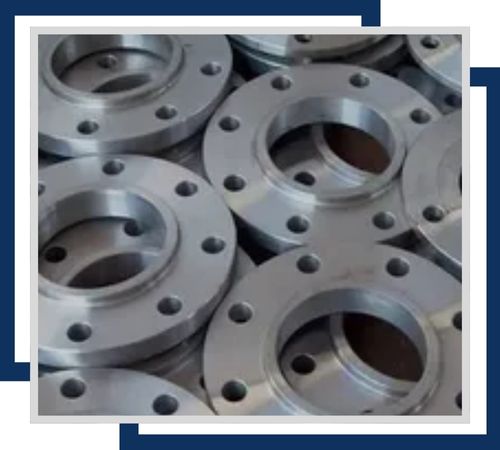

SS 347Hsocket weld flanges, manufactured from stainless steel alloy 347H, ensure secure pipe connections with enhanced corrosion resistance and high-temperature strength, suitable for high-pressure systems in various industries.
SS 347H ring type joint flanges, constructed from stainless steel alloy 347H, provide leak-proof connections with excellent corrosion resistance and high-temperature performance, ideal for high-pressure and critical service applications.
SS 347H forged flanges, made from stainless steel alloy 347H, offer superior strength, excellent corrosion resistance, and high-temperature endurance, making them ideal for demanding industrial applications and high-pressure environments.
We conduct various rigorous tests, including dimensional, mechanical, and chemical analysis, to ensure the highest quality of our Stainless Steel 347H Flanges. Our in-house quality control team oversees all processes, complemented by third-party inspections to guarantee compliance with industry standards. With a commitment to prompt delivery we ensure that our clients receive their products on time, every time.
Stainless Steel 347H Flanges are used in very high stress and also under high-temperature conditions. It is highly resistant to corrosion and oxidation. It is used in chemical processing, refineries, and power plants where temperatures are at high levels with extra harsh condition. The added columbium and tantalum increase stability and sensitize to resistance so that there will be no intergranular corrosion. In other industries, the 347H flanges are used in the equipment, like boilers, heat exchangers, and reactors in petrochemical, pharmaceutical, and food processing industries. This makes them the choice for extreme application in critical use in several fields.
