Shashank Stainless is a stainless steel manufacturer and exporter company based in Dubai, UAE, catering to the requirements of all industrialists who strive for excellence. We specialize in providing diversified stainless steel materials, which include Stainless Steel 420 pipes. Products are produced with great adherence to hardiness, precision, and exceptional performance across different industries. We ensure timely delivery and offer customized solutions to meet the specific needs of our clients, establishing ourselves as a trusted partner in the stainless steel market.
Stainless steel 420 pipes are made of martensitic steel consisting mainly of 12-14% chromium, 0.15% carbon, manganese, silicon and trace amounts of phosphorus Known for its durability and high strength this pipe provides good corrosion resistance in sensitive areas, but under certain conditions which will be susceptible to stress corrosion cracking They are qualified by With excellent machinability, they are commonly used in applications such as valves, pumps and shafts. Their technical properties include a tensile strength of 550 MPa and a yield strength of about 350 MPa.
| Item | Stainless Steel 420 Pipe |
| Standard | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |
| Type | Seamless / ERW / Welded / Fabricated / CDW |
| Outer Diameter Size | SEAMLESS – 1/2″ NB TO 18″ NB WELDED / ERW- 1″ NB TO 16″ NB EFW – 8″ NB TO 110″ NB |
| Form | Round Pipes, Square Pipes, Rectangular Pipe, “U” Shape Pipes, Hydraulic Pipes |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size End: Plain End, Beveled End, Treaded |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Testing | Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiographic Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| Fe | C | Mn | Si | Cr | Ni* | Mo* | P | S | Cu* | Al* | Sn* |
|---|---|---|---|---|---|---|---|---|---|---|---|
Balance | 0.15-0.40% | 1.00% max | 1.00% max | 12.00-14% | 0.50% max | 0.50% max | 0.04% max | 0.03% max | 0.50% max | 0.15% max | 0.05% max |
| Property | Metric |
|---|---|
Density | 7.74 g/cm3 |
Elastic Modulus | 200 GPa |
Electrical Resistivity | 0.55 x 10-7 .m |
Tensile Strength | 655 MPa |
Yield strength (Temper: Annealed) Minimum 0.2% offset | 40,000 psi |
Yield Strength (Temper: Hardened + 350°F) Typical 2% offset | 195,000 psi |
Elongation (% in 50 mm) | 25 |
Brinell Hardness (HB) | 241 max |
Contact us to get a quick quote for your requirement.
We ensures the highest quality of stainless steel 420 pipes through rigorous testing procedures, including chemical composition analysis, mechanical property testing and surface quality testing Every pipe is certified with industry standards, assuring durability, strength and corrosion resistance to a variety of industrial applications

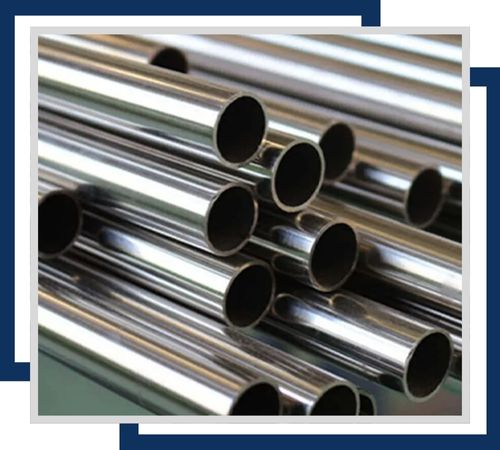

Stainless Steel 420 ERW (Electric Resistance Welded) pipes are welded from stainless steel strips, offering high hardness and wear resistance, ideal for cutlery, surgical instruments, and high-strength applications.

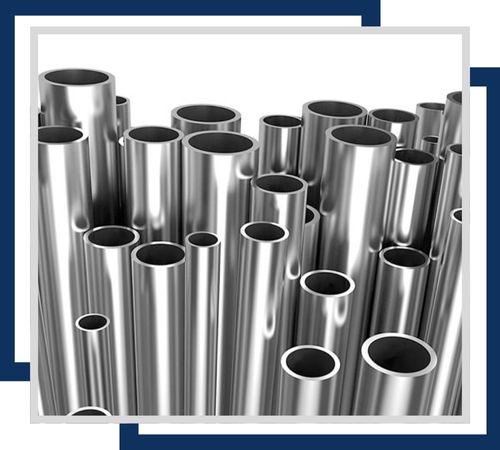

Stainless Steel 420 EFW (Electric Fusion Welded) pipes are made by fusing stainless steel plates, providing high-strength, wear-resistant pipes suitable for industrial tools and components requiring durability and hardness.

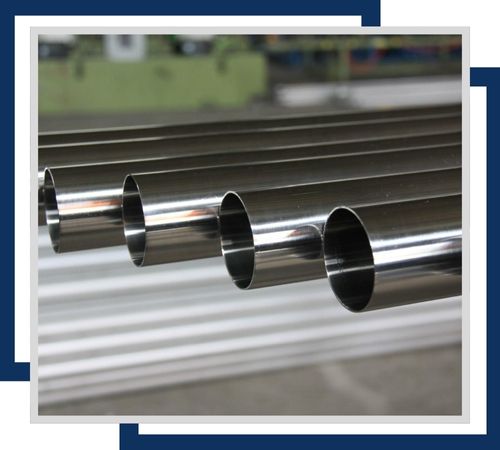

Stainless Steel 420 LSAW (Longitudinally Submerged Arc Welded) pipes are produced using submerged arc welding, offering strength and hardness for large-diameter applications, including industrial and high-stress environments.

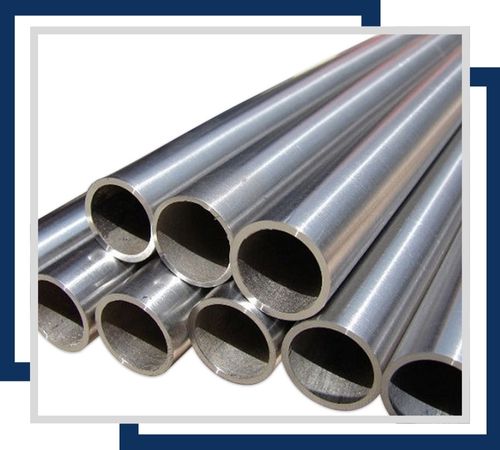

Stainless Steel 420 Seamless pipes are manufactured without welding, providing uniform strength and high hardness, ideal for cutlery, surgical tools, and applications requiring excellent wear resistance and durability.

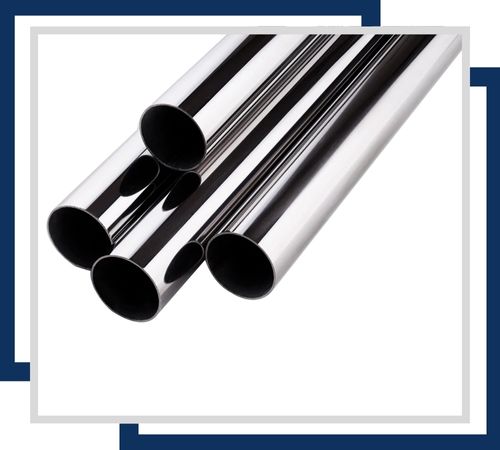

Stainless Steel 420 Welded pipes are made by welding stainless steel sections, offering high hardness and wear resistance, suitable for industrial applications, cutlery, and tools requiring enhanced durability.

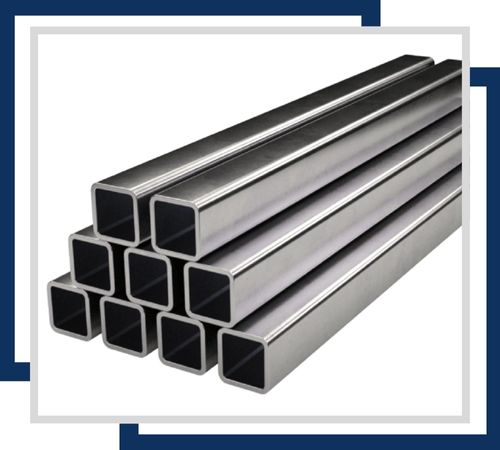

Stainless Steel 420 Square pipes feature a square cross-section, providing structural support and high hardness, ideal for use in applications requiring durability, wear resistance, and a unique design.
The 420 stainless steel pipes exhibit strong corrosion resistance, withstanding extreme conditions. Such strong pipes find their application in many products where strength and longevity are key needs, such as in the food processing, chemical, and pharmaceutical industries. They are also widely used in many equipment manufacturing applications like valves, pumps, and fittings. Their resistance to oxidation makes them particularly suitable for very high-temperature environments, though they are being used increasingly for marine applications and medical devices to aerospace components providing both performance and reliability in sensitive sectors.
