Shashank Stainless, based in Dubai-UAE is a trusted name in the manufacturing and supply of high-quality stainless steel products. We offer a wide range of products including the 309LMo MIG and TIG Filler Welding Wire and Rod. Designed for excellent corrosion resistance and high-temperature applications. Our Stainless Steel 309LMo is widely recognized for its superior performance in environments subjected to elevated temperatures and aggressive conditions. This alloy is ideal for welding components used in furnace parts, heat exchangers and chemical equipment.
Alloy 309LMo MIG and TIG filler welding wires and rods are specifically designed for welding high-alloy materials. Providing exceptional corrosion resistance and strength at high temperatures. The addition of molybdenum (Mo) enhances the pitting and crevice corrosion resistance of the alloy, making it suitable for harsh environments. Its specificity contains 23% chromium, 13% nickel and 2-3% molybdenum, and low carbon content to prevent carbide precipitation and intergranular corrosion this alloy is ideal for disproportionate steel, over leveling, chemical processing, petrochemicals and power generation industries to include and applications, ensuring durable, high-quality welds.
| Classification | AWS A5.9, 309LMo |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Diameters | .023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8” |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS 309LMo MIG & TIG Filler Metal Application & uses |
|
| C | Mn | Si | Cr | Ni | S | P | Mo | Cu |
| 0.03 max | 1.0-2.5 | 0.30-0.65 | 23-25 | 12-14 | 0.03 max | 0.03 max | 2-3 | 0.75 max |
| Tensile Strength (psi) | 86,000 psi (593 MPa) |
|---|---|
| Yield Strength (psi) | 57,000 psi (393 MPa) |
| Elongation (%) | 42% |
Contact us to get a quick quote for your requirement.

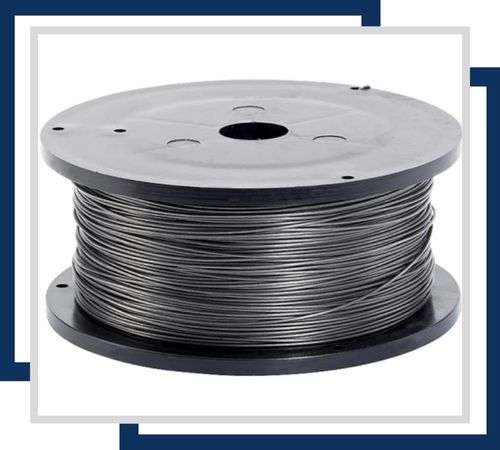

Alloy 309LMo MIG filler wire provides excellent corrosion resistance and high-temperature strength, suitable for welding in harsh environments like chemical processing and power generation.

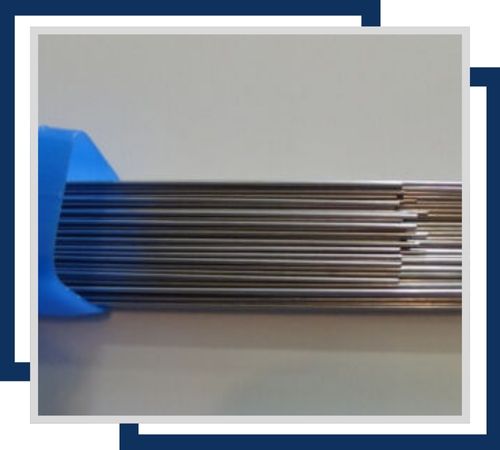

Alloy 309LMo TIG filler wire offers superior resistance to pitting and crevice corrosion, ideal for high-temperature applications and joining dissimilar metals in challenging environments.

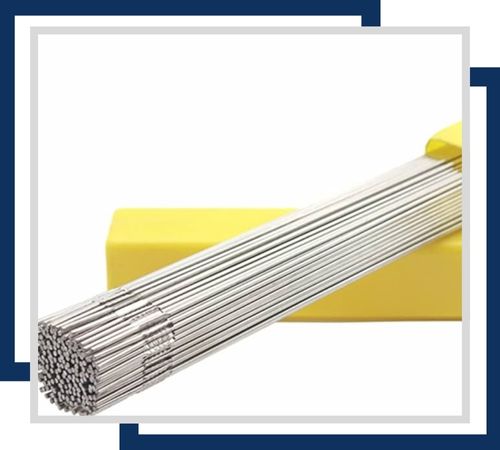

Alloy 309LMo TIG filler rod delivers robust corrosion resistance and strength, perfect for precision welding in harsh conditions, including chemical processing, petrochemical, and power generation industries.
We conduct extensive in-house testing to ensure that the highest quality standards are achieved by 309L Mo MIG and TIG Filler Welding Wires and Rods. Our customers know that we offer comprehensive third-party inspection services for these products to provide them with the assurance that these products are reliable and performing. We equally hold equal attention with regard to the timely supply of products for which you can place your orders in advance thus enabling you to also plan efficiently the other components of your project.
Alloy 309LMo MIG and TIG Filler Welding Wire and Rod are extensively used in demanding programs requiring superior corrosion resistance and energy at improved temperatures. The addition of molybdenum enhances resistance to pitting and crevice corrosion, making it best for harsh environments. Common makes use of encompass chemical processing system, petrochemical plant life, electricity generation, and heat exchangers. It is also used for joining distinct metals and overlay welding. The alloy’s strong properties ensure long lasting, exquisite welds, making it suitable for each industrial fabrication and protection programs in corrosive and high-temperature settings.
