Home > Electrodes > AWS Class ER316LSi Mig & Tig Filler Welding Wire & Rod
Shashank Stainless, from Dubai, is the largest stainless steel equipment supplier in the UAE, with a vast range of material and a variety of welding solutions. We offer AWS Class ER316LSi MIG and TIG Filler Welding Wire and Rod, which is recommended for welding of stainless steels in corrosive environments, resulting in great strength and oxidation resistance. Stainless Steel AWS Class ER316LSi is high-grade filler wire, and is frequently used for welding molybdenum-bearing stainless steels.
AWS Class ER316LSi is a stainless steel welding wire known for its low carbon content and high silicon content. It includes about 18% chromium, 12% nickel, 2.5% molybdenum and high silicon (0.65-1.00%). These factors increase corrosion and oxidation resistance especially in chloride environments. The wire provides smooth weld beads with low moisture content. Its advantages include excellent weldability improved arc stability and improved mechanical properties. Which make it useful for welding 316 and 316L stainless steels in a variety of applications including medical and marine applications.
| Classification | AWS A5.9, ER316LSi |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Diameters | .023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8” |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ER316LSi MIG & TIG Filler Metal Application & uses |
|
| C | Cr | Ni | Mo | Mn | Si | P | S |
| 0.03 | 18.0-20.0 | 11.0-14.0 | 2.0-3.0 | 1.0-2.5 | 0.65-1.0 | 0.03 | 0.03 |
| Yield, kpsi: | 64 |
| Tensile Strength, kpsi: | 90 |
| Elongation%, min: | 37 |
Contact us to get a quick quote for your requirement.

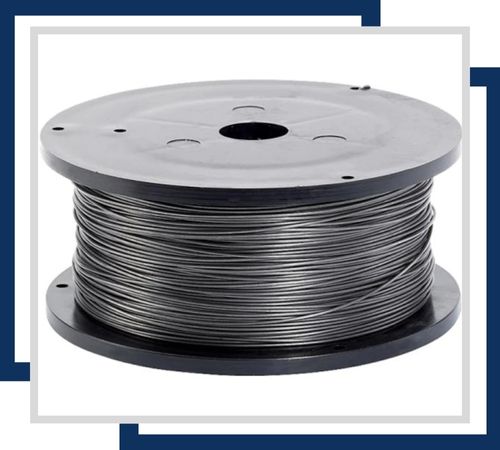

Stainless Steel ER316LSi MIG Filler Wire is designed for MIG welding applications with excellent corrosion resistance, especially in environments with chlorides and chemicals. It typically comes in sizes ranging from 0.030 inches (0.8 mm) to 0.045 inches (1.2 mm) in diameter. The wire provides good weld bead appearance and reduces spatter.

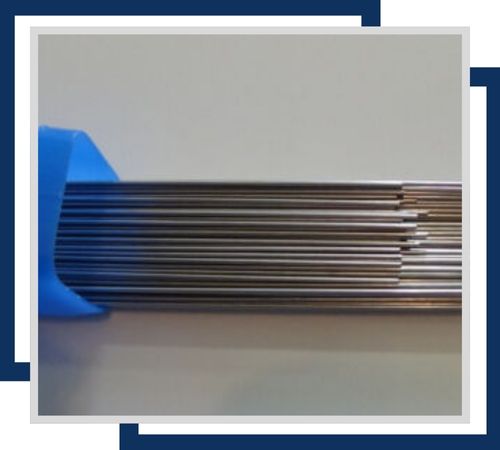

Stainless Steel ER316LSi TIG Filler Wire is suitable for TIG welding and offers enhanced corrosion resistance, particularly in harsh environments. It is available in sizes from 1/16 inch (1.6 mm) to 3/32 inch (2.4 mm) in diameter. The wire ensures high-quality, clean welds with minimal oxidation.

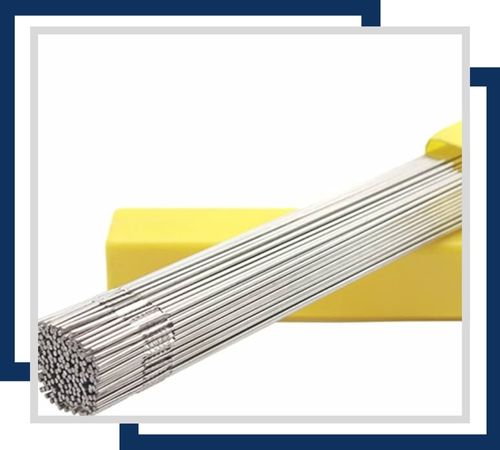

Stainless Steel ER316LSi TIG Filler Rod is used for TIG welding stainless steel, providing superior resistance to pitting and crevice corrosion. Commonly available in lengths of 36 inches (914 mm) and diameters from 1/16 inch (1.6 mm) to 3/32 inch (2.4 mm). It delivers excellent weld strength and smooth, clean welds.
Each AWS Class ER316LSi MIG and TIG Filler Welding Wire and Rod is carefully packed using high-quality materials to prevent any damage or contamination during transit. We prioritize timely deliveries also guaranteeing quick and efficient transportation to meet our clients needs. Additionally all relevant documentation regarding the product is provided at the time of delivery assuring full transparency and satisfaction for our valued customers.
AWS Class ER316LSi is a Stainless Steel Welding Wire designed for welding 316 and 316L stainless steel. Providing excellent corrosion resistance, making it suitable for applications in industries such as food processing, chemical and marine environments with high acid and chemical resistance is essential ER316LSi for excellent weldability and mechanical properties, and making it ideal for welding stainless steel of similar composition approximately where appearance and durability are important.
