Home > Electrodes > AWS Class ER410NiMo Mig & Tig Filler Welding Wire & Rod
Shashank Stainless based in Dubai, UAE is a leading manufacturer and supplier of premium stainless steel products. Providing customized solutions for a wide range of industries. One of our key offerings is the AWS Class ER410NiMo MIG and TIG Filler Welding Wire and Rod. Customized for welding martensitic stainless steels with enhanced corrosion, oxidation and wear resistance. These filler wires and rods are ideal for applications requiring high strength and excellent performance in harsh environments. Our focus on delivering exceptional quality products.
One of the stainless steel welding wires is the AWS Class ER410NiMo where chromium, nickel, and molybdenum account for around 12%, 4.5%, and 0.5%, respectively. This beneficial composition allows it to exhibit corrosion resistance, high strength, and toughness. The tensile strength ranges around 690 MPa with a hardness value up to 35 HRC. Advantages of using ER410NiMo include its ability to maintain strength at elevated temperatures, wear and corrosion resistance and suitability for overlay and joining applications in harsh environments, making it ideal for industries such as oil and gas and power generation.
| Classification | AWS A5.9, ER410NiMo |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Diameters | .023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8” |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ER410NiMo MIG & TIG Filler Metal Application & uses |
|
| C | Cr | Ni | Mo | Mn | Si | P | S | Cu |
| 0.06 | 11.0-12.5 | 4.0-5.0 | 0.4-0.7 | 0.6 | 0.5 | 0.03 | 0.03 | 0.75 |
| Yield, kpsi: | 92 |
| Tensile Strength, kpsi: | 118 |
| Elongation%, min: | 20 |
Contact us to get a quick quote for your requirement.

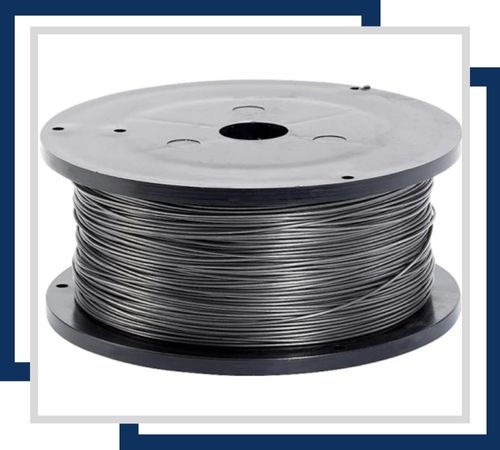

ER410NiMo MIG filler wire provides enhanced toughness and corrosion resistance, ideal for welding high-stress components and tools, ensuring strong, durable welds in demanding environments.

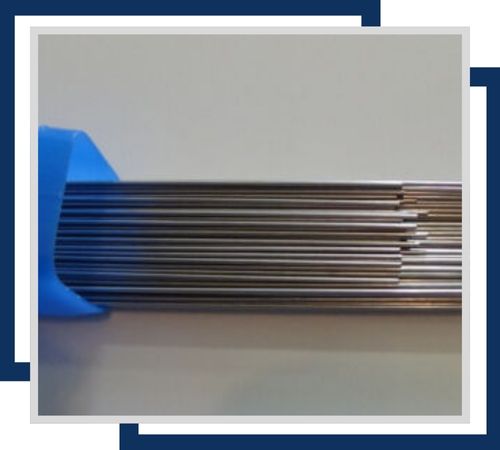

ER410NiMo TIG filler wire offers superior toughness and resistance to corrosion, suitable for welding martensitic stainless steels in applications requiring high durability and performance under stress.

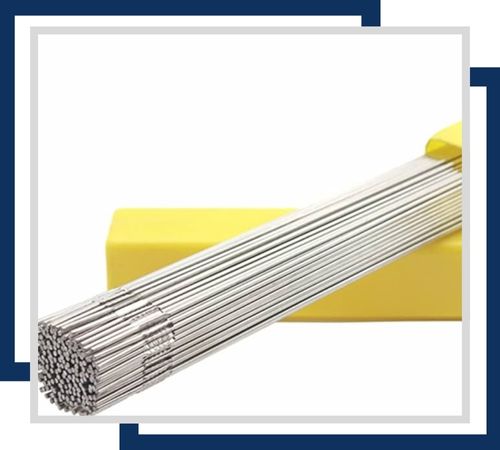

ER410NiMo TIG filler rod delivers excellent toughness and resistance to corrosion, ideal for welding components exposed to high temperatures and severe conditions, ensuring durability and strong welds.
After manufacturing our quality control team conducts a series of destructive and non-destructive tests. Using advanced tools to make sure the performance and reliability of the AWS Class ER410NiMo MIG and TIG Filler Welding Wire and Rod. We then package the products securely and ensure timely delivery to customers providing all necessary documentation at the time of delivery to assure complete transparency.
AWS Class ER410NiMo is mostly used in applications requiring high strength and corrosion resistance. It is useful for overlaying and cladding in industries such as oil and gas, power generation, and petrochemical. Common uses include the repair and maintenance of turbine blades, valves, pump components, and other machinery subjected to wear and high temperatures. Its excellent toughness and resistance to cracking also make it suitable for joining dissimilar metals and for use in environments with abrasive conditions, ensuring long-lasting performance and reliability.
