Shashank Stainless is one of the Top manufacturers and suppliers of high-quality stainless steel products based in Dubai, UAE. An unrivaled reputation for superior solutions calls for specializing in a wide range of stainless steel products, including Stainless Steel 304 Tubing. The 304-grade stainless steel tubing is ranked among the best corrosion-resistant, strong, and versatile options, suitable for construction, automotive, manufacturing, and more. we aims to deliver international standard products that meet customer expectations with high levels of satisfaction and reliability in every order.
Stainless steel 304 tubing is made primarily of steel, containing 18-20% chromium and 8-10.5% nickel, which provides excellent corrosion resistance and durability It also contains trace amounts of manganese, silicon and carbon. Mechanical properties of 304 stainless steel include 515-827 MPa tensile strength, 205 MPa yield strength and 40% elongation at 50 mm At hardness 201 HB, it provides good formability and weldability, making it suitable for a wide range of applications including food services, chemical equipment and building materials
Tube Range : 1/2″ OD – 12″ OD, Guage: 25 SWG – 10 SWG
Outer Diameter : 3.00 mm – 219.10 mm
Wall Thickness : 0.40 mm – 12.70 mm
Schedules : 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH
Length : Upto 30 meters, Custom Cut Lengths
Specifications : ASTM A213 / ASTM SA213
Types : Round, Square, Rectangle, Coil, “U” Shape, Hydraulic & Honed Tubes
| SS | 304 |
|---|---|
| Ni | 8 – 11 |
| Fe | Balance |
| Cr | 18 – 20 |
| C | 0.08 max |
| Si | 0.75 max |
| Mn | 2 max |
| P | 0.040 max |
| S | 0.030 max |
| N | – |
| Grade | 304 |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 40 |
| Hardness | |
| Rockwell B (HR B) max | 92 |
| Brinell (HB) max | 201 |
Contact us to get a quick quote for your requirement.
We ensures high quality standards in the processing of Stainless Steel 304 Tubing through a rigorous testing and certification process. We ensure intensive inspection for dimensional accuracy, mechanical properties, corrosion resistance, and surface finish of our products. We can provide full traceability, including mill certificates, to ensure durability and performance compliance with international standards.

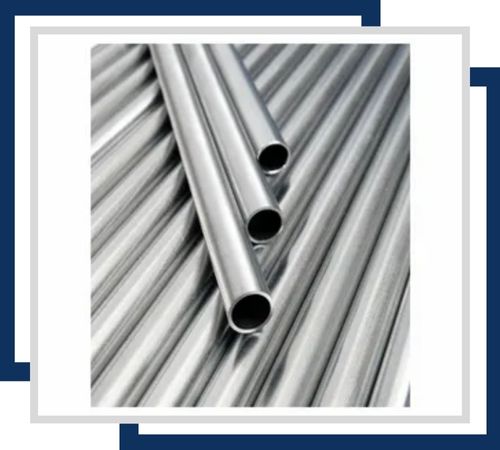

This tubing is available in a variety of sizes and diameters, typically ranging from 1/8″ to 12″ OD. It offers excellent corrosion resistance, particularly against oxidative and corrosive environments. Ideal for high-pressure applications due to its uniform strength and integrity.

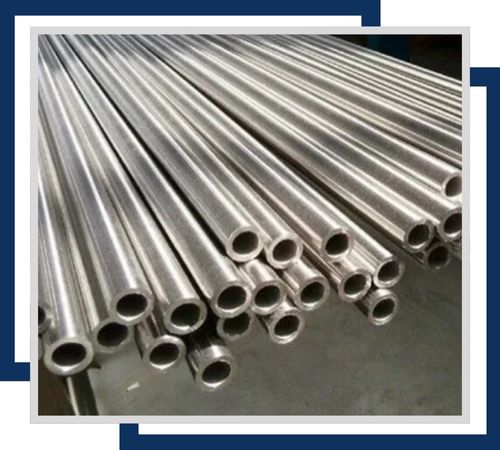

Commonly found in sizes from 1/4″ to 8″ OD, this tubing is produced by welding a seam along its length. It provides good corrosion resistance and is often used in structural and decorative applications. Less uniform in strength compared to seamless tubing but cost-effective.

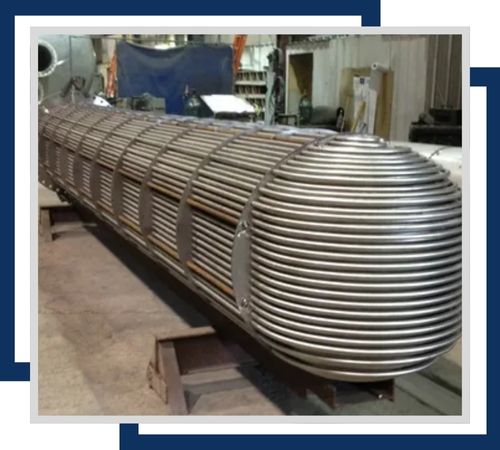

These tubes are designed for thermal exchange processes and come in sizes ranging from 1/2″ to 4″ OD. They offer superior resistance to heat and corrosion, making them ideal for use in various heating and cooling systems.

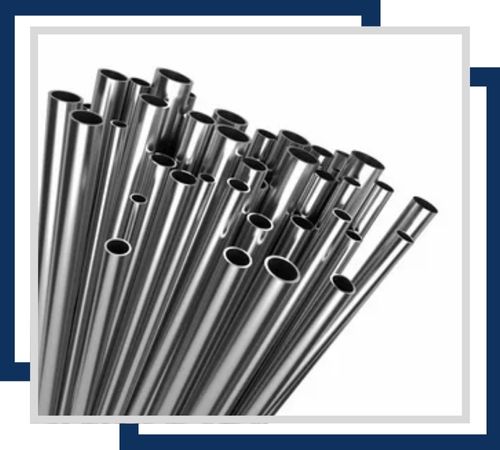

Typically available in sizes from 1/8″ to 2″ OD, this tubing is used for precision instrumentation. It features excellent resistance to corrosion and ensures accurate readings in a variety of monitoring and control applications.

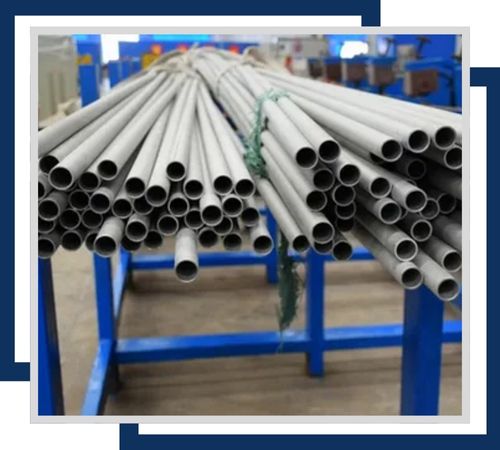

Sized from 1″ to 6″ OD, these tubes are specifically designed for boiler systems. They provide high resistance to heat and corrosion, ensuring durability and reliability under high-pressure and high-temperature conditions.

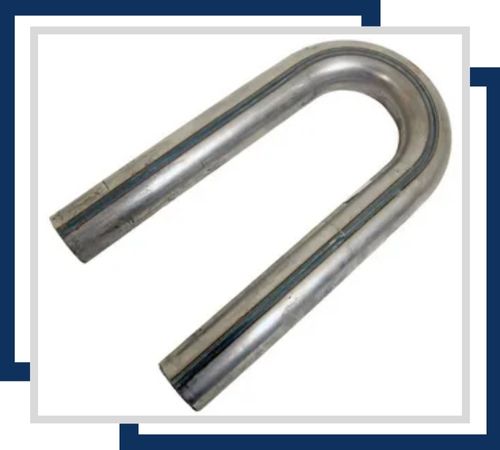

These U-shaped tubes are often used in heat exchangers and come in sizes from 1/2″ to 3″ OD. They are highly resistant to corrosion and thermal stress, making them ideal for applications requiring efficient heat transfer.

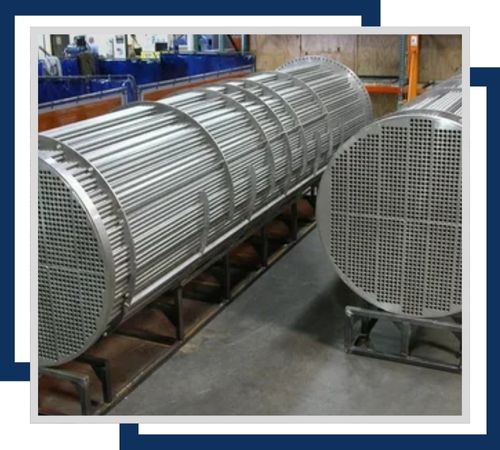

: Available in sizes from 1/2″ to 3″ OD, these tubes are used in condenser systems. They provide excellent corrosion resistance and durability against the harsh conditions of cooling and condensation processes.

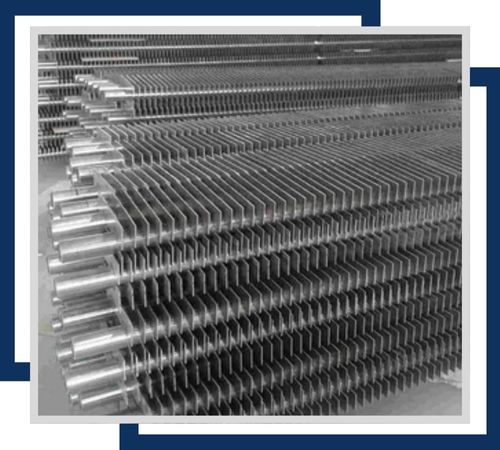

Typically found in sizes from 1″ to 4″ OD, fin tubes are used in heat exchangers and radiators. They offer strong corrosion resistance and enhanced heat transfer efficiency due to their finned surface design.
Stainless Steel 304 Tubing is widely applied in industries demanding high resistance to corrosion and durability. Applications include food processing, pharmaceutical manufacturing, chemical plant construction, and automotive exhaust, thus ideal for usage on any liquid and gas in tough applications, such as water treatment plants, heat exchangers, and HVAC. It has the ability to stand oxidation, acids, and chloride environments making it suitable for either indoor or outdoor applications. Further, it is widely applied in constructions, medical tools, and other lab equipment since 304 tubing has strength with less maintenance requirement.
