Established at the hub of the city, in Dubai, UAE, Shashank Stainless represents one of the prominent manufacturers as well as the suppliers of fine quality stainless steel products. Based on years of experience in stainless steel products, it provides a multitude of stainless steel products such as the Stainless Steel 304H Tubing. Providing perfect quality, excellence, and preciseness, this organization caters to various fields with customized client solutions. Their commitment toward excellence and utmost customer satisfaction has secured for them their high reputation all around the world’s marketplace.
Stainless Steel 304H Tubing is made up of 18-20% chromium and 8-10. Five nickel, with a maximum carbon content material of 0.04-zero.10%, providing superior electricity and resistance to oxidation. It also carries hint elements like manganese, silicon, and phosphorus. Its very famous top-of-the-line mechanical houses include a tensile strength of 515 MPa (min), yield strength of 205 MPa (min), and an elongation of forty% (min) in 50 mm. Its high corrosion resistance, along with top weldability and formability, make it ideal for excessive-temperature applications in different industries.
| Alloy 304H Standards | Stainless Steel 304H |
|---|---|
| ASTM A213 Stainless Steel Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
| ASTM A249 TP 304H Stainless Steel Welded Tube Size | 6.35 mm OD To 152 mm OD |
| ASTM A269 TP 304H Stainless Steel Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| ASME SA213 TP 304H Stainless Steel Tube wall thickness | 0.020″ –0.220″, (special wall thicknesses available) |
| SS 304H Length | Single Random, Double Random, Standard & Cut length Tube |
| UNS S30409 Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
| ASTM A213 Gr. TP304H Form | ‘U’ bent or Hollow, Hydraulic, LSAW, Boiler, Straight Tube, Tube Coil, Round, Rectangular, Square Etc |
| ASTM A269 TP 304H Stainless Steel Type | Seamless, ERW, EFW, Welded, Fabricated Tube |
| ASTM A213 Stainless Steel End | Plain End, Beveled End, Treaded Tube |
| ASME SA213 SS 304H Marking | All 304h Stainless Steel Tube are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| ASME SA213TP 304H Stainless Steel Application | Oil Tube, Gas Tube, Fluid Tube, Boiler Tube, Heat exchanger Tube, |
| 304H SS Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Stainless Steel 304H Specialize in | Stainless Steel 304H Capillary Tube & Other Odd Size Alloy 304H Heat Exchanger & Condenser Tube |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 304H | min. | 0.04 | – | – | – | – | 18.0 | – | 8.0 | – |
| max. | 0.10 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304H | 515 | 205 | 40 | 92 | 201 |
Contact us to get a quick quote for your requirement.
We assures that all its Stainless Steel 304H Tubing is thoroughly tested for quality and performance. Mechanical properties, corrosion resistance, and dimensional accuracy of the tubing are tested. The following certificates are also provided: Material Test Reports (MTR), 3.1 certificates, and ISO compliance, ensuring industry standards and reliability.

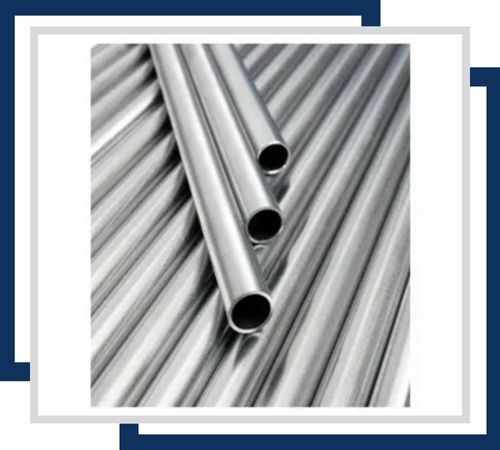

These tubes offer superior corrosion resistance, ideal for high-pressure applications. Sizes typically range from 1/8″ to 24″ in diameter. They provide excellent durability and are used in industries requiring precise tolerances.
Known for its excellent corrosion resistance, this tubing is available in sizes from 1/8″ to 24″. It’s cost-effective for less critical applications and offers good strength and flexibility for various uses.
These tubes excel in corrosion resistance and thermal conductivity. Common sizes range from 1/2″ to 1-1/2″ in diameter, designed for efficient heat transfer in industrial applications.

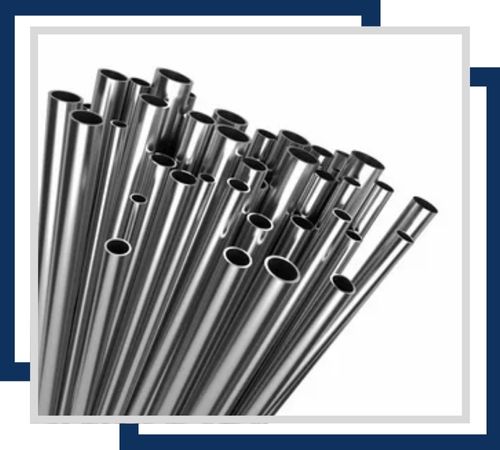

Providing high corrosion resistance, these tubes are typically available in sizes from 1/16″ to 2″. They are crucial for precise instrumentation and control systems in various industries.

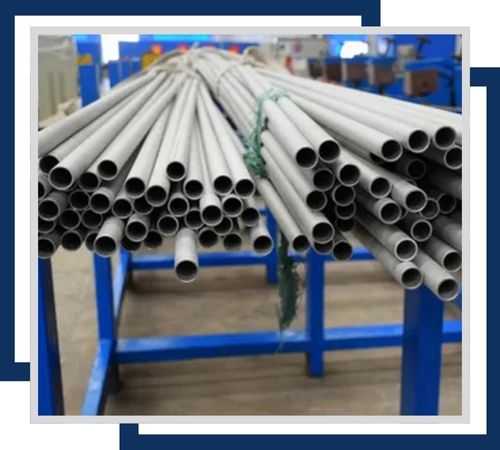

These corrosion-resistant tubes come in sizes typically from 1/2″ to 5″ in diameter. They are designed to withstand high temperatures and pressures in boiler systems.

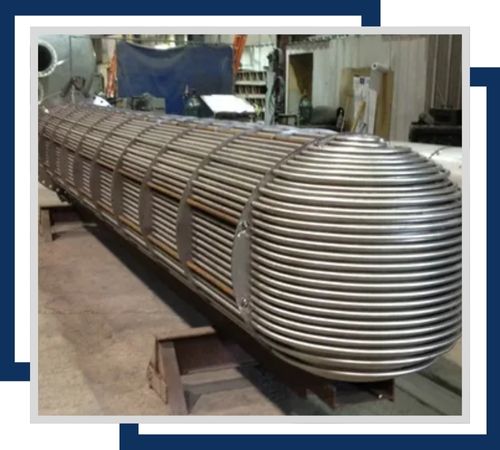

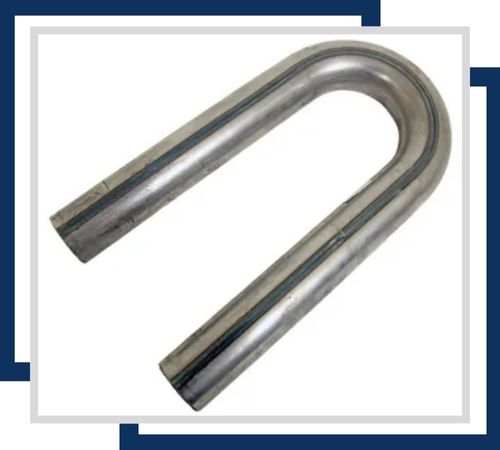

Featuring high corrosion resistance, these U-shaped tubes are available in sizes from 1/2″ to 1-1/2″. They are commonly used in heat exchangers and condensers for efficient thermal management.

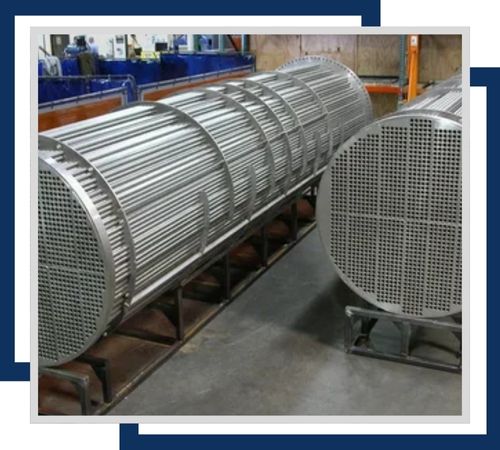

Known for its superior corrosion resistance, this tubing ranges from 3/8″ to 1-1/4″ in diameter. It’s used in condensers to efficiently transfer heat and condense steam into water.

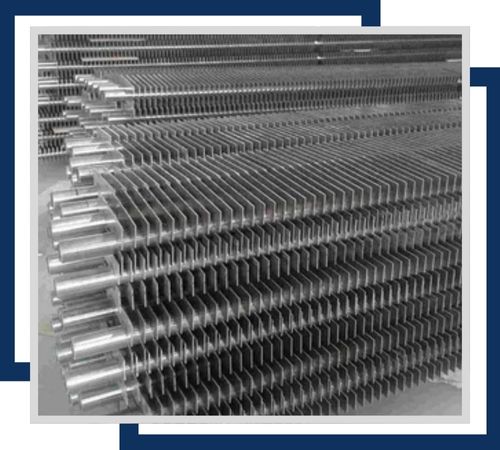

These tubes offer excellent corrosion resistance and are available in sizes typically from 1/2″ to 1-1/2″. They are used in applications requiring enhanced heat transfer efficiency due to their extended surface area.
The strength, durability, and anti-corrosion qualities of the material make stainless steel 304H tubing to be used as tubing in all the high temperature applications. Many applications require great heat and pressure resistance, as witnessed in some petrochemical industries, chemical processing, and even power generation as well as in oil and gas. Applications are also reported to include their usage in exhaust systems, heat exchangers, boilers, condensers. It has high tensile strength for use at high temperatures and offers resistance to oxidation and corrosion that ensures a long service life.
