Shashank Stainless is a leading manufacturer of quality stainless steel products based in Dubai, UAE. we manufacturer of stainless steel conduits, including stainless steel 305 containers, offers elegant solutions to meet industrial needs. With a commitment to quality, we ensures the durability, accuracy and corrosion resistance of its products, and makes their team of experts a trusted name in the industry to provide customized services providing the highest quality stainless steel products to customers worldwide.
Stainless Steel 305 tubing is an austenitic stainless steel alloy made primarily of 18-20% chromium and 8-12% nickel, with small amounts of manganese and silicon Compared to other alloys it provides improved formability and corrosion resistance, and provides ideal for use in projects. Mechanical properties include tensile strength of 515-860 MPa, yield strength of 205-290 MPa and elongation of 40-50% This material is known for its excellent weldability, low magnetic permeability and resistant to oxidation and corrosion in aggressive environments
Type: Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger, and Condenser Tubes
Grades: TP304, TP304L, TP304H
Size: 1/8” NB to 5” NB, 1/4” OD to 5” OD sizes stainless steel seamless tubes also available
Length: Up to 6 meters, custom cut lengths
Thickness: 1mm to 13mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10
Finish: No.1 Pickled Finish, No.4 finish, BA Finish, Electropolished Pipes
Delivery Condition: Hot Finish, Cold Finish, Bright Annealed, Polished, Annealed and Pickled, Passivated, Stress Relived
| Element | Content (%) |
|---|---|
| Iron, Fe | 67 |
| Chromium, Cr | 18 |
| Nickel, Ni | 12 |
| Manganese, Mn | ≤ 2 |
| Silicon, Si | ≤ 1 |
| Carbon, C | 0.12 |
| Phosphorous, P | 0.045 |
| Sulfur, S | 0.030 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength, ultimate | 585 MPa | 84800 psi |
| Tensile strength, yield (@0.2%) | 260 MPa | 37700 psi |
| Modulus of elasticity | 193 GPa | 28000 ksi |
| Shear modulus | 86 GPa | 12500 ksi |
| Elongation at break (in 50 mm) | 50 | 50 |
| Hardness, Brinell | 80 | 80 |
| Hardness, Knoop (converted from Brinell hardness) | 97 | 97 |
| Hardness, Rockwell B (converted from Brinell hardness) | 45 | 45 |
| Hardness, Vickers (converted from Brinell hardness) | 82 | 82 |
Contact us to get a quick quote for your requirement.
We tests all Stainless Steel 305 Tubing to the international quality standard. Every batch is tested for composition, mechanical properties, and corrosion resistance. The company provides certification for material traceability that complies with ASTM, EN, and other relevant standards to ensure product excellence and reliability.

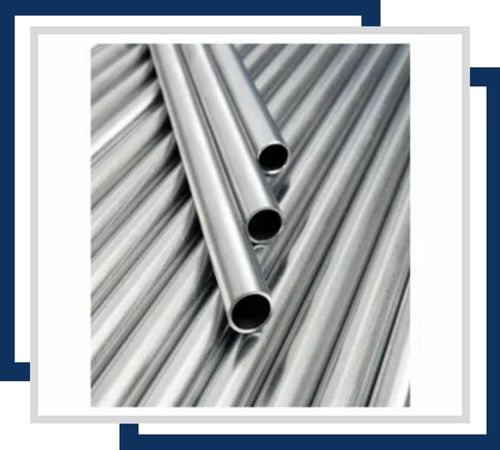

This tubing comes in a variety of sizes, typically ranging from 1/8″ to 4″ in diameter. Known for its exceptional corrosion resistance and smooth finish, it is ideal for applications requiring high durability and reliability.

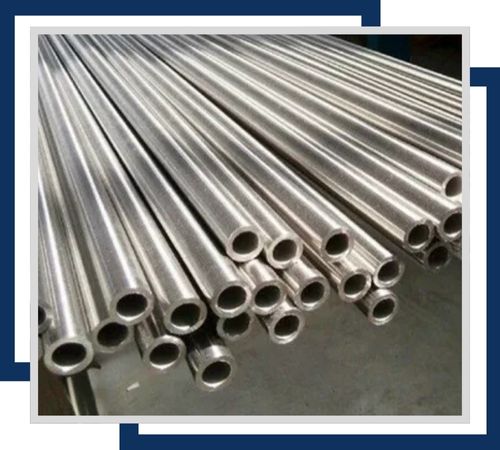

Available in sizes from 1/4″ to 6″ in diameter, this tubing features a welded seam for structural strength. It offers excellent corrosion resistance and is commonly used in both industrial and architectural applications.

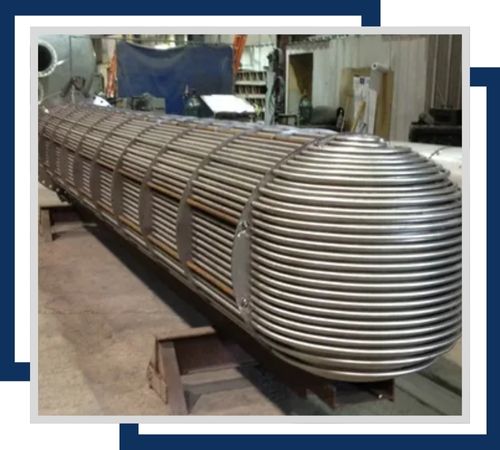

Designed for heat transfer efficiency, these tubes are generally sized from 1/2″ to 2″ in diameter. They exhibit high resistance to corrosion and are used in heat exchangers for various industrial processes.

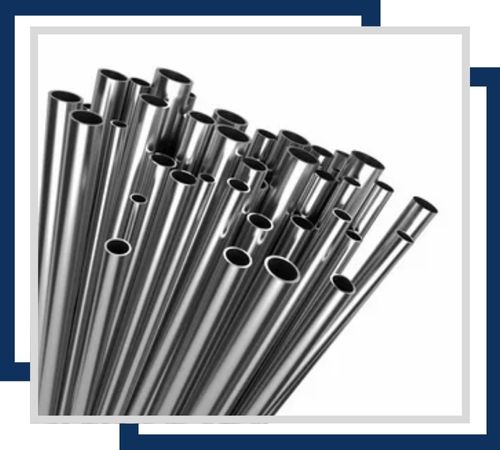

Stainless Steel 305 Instrumentation Tubing**: Available in sizes ranging from 1/16″ to 1/2″ in diameter, this tubing is designed for precise instrumentation applications. It offers superior corrosion resistance and is ideal for use in harsh environments and critical measurement systems.

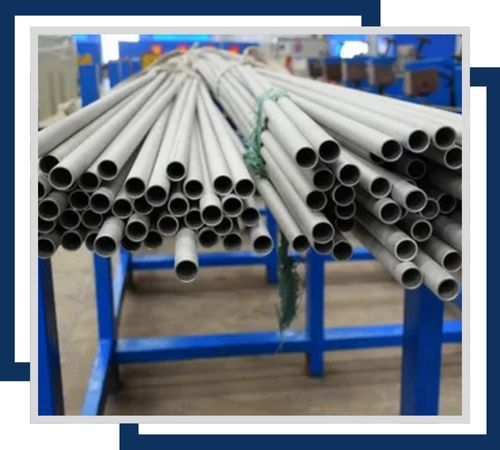

Typically available in sizes from 1″ to 4″ in diameter, these tubes are engineered to withstand high temperatures and pressures. They are highly corrosion-resistant and suitable for boiler systems.

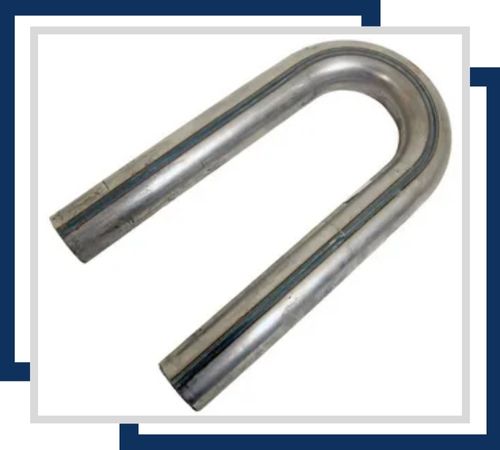

Usually ranging from 1/2″ to 2″ in diameter, these U-shaped tubes are designed for applications such as heat exchangers and condensers. They offer strong corrosion resistance and flexibility in heat transfer systems.

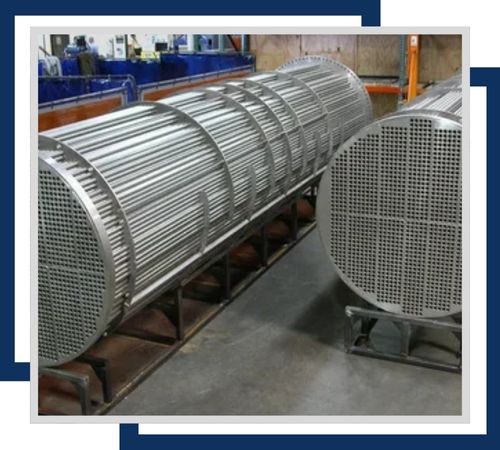

Available in sizes from 1/2″ to 3″ in diameter, these tubes are optimized for use in condensers. They provide excellent resistance to corrosion and scaling, making them ideal for high-performance cooling systems.

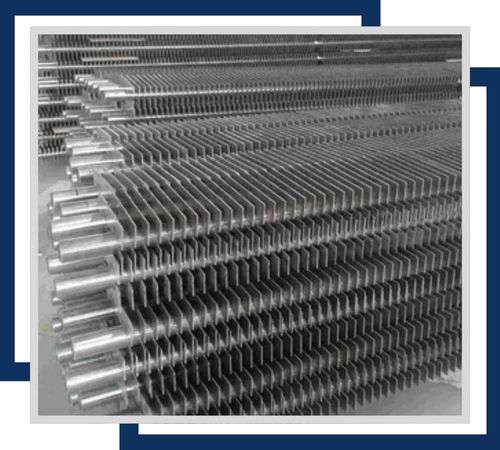

Typically sized from 1″ to 2″ in diameter, these tubes feature finned surfaces for enhanced heat transfer. They are highly resistant to corrosion and are used in various heat exchange and cooling applications.
Stainless steel 305 tubing is widely used because of its excellent corrosion resistance and ease of manufacture. It is commonly used in industries such as food processing, pharmaceutical manufacturing and solvents, where hygiene and durability are important. Its high form capacity makes it ideal for applications requiring complex shapes and sizes, such as in heat exchangers, medical devices and automotive parts. The non-magnetic properties of the coating also make it suitable for electronic applications in sensitive environments. Desirable for strength, longevity and low maintenance.
