Shashank Stainless is a manufacturer and supplier of stainless steel products with headquarters located in Dubai, UAE. With an experience of years in this industry, we have established ourselves in the provision of a wide scope of stainless steel solutions for different industries such as construction, designing, and engineering. Our stainless steel 416 tubing is known in the market for its outstanding strength, corrosion resistance, and precision. It is best used in applications with high machinability. Such a material boasts superior performance within environments demanding reliability and durability. At Shashank Stainless, we commit to delivering quality goods and services to the clients to their satisfaction and prosperity.
Stainless steel 416 is a martensitic alloy composed mainly of 0.15% chromium, 1.0% sulfur and 12.0-14.0% molybdenum, the rest being steel giving good mechanical properties, good strength and moderate corrosion resistance This alloy is magnetic, Temperature changes can be made to increase its strength. Advantages include ease of machining, high tensile strength and improved corrosion resistance. It is commonly used in applications requiring mechanical precision and moderate corrosion resistance, such as aerospace and automotive parts.
| Grade | UNS | BS | BS | EN | EN | Swedish | Japanese |
| – | No. | EN | Name | SS | JIS | ||
| 416 | S41600 | 416S21 | 56AM | 1.4005 | X12CrS13 | 2380 | SUS 416 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| 416 | min.max. | -0.15 | -1.25 | -1.00 | -0.060 | 0.15- | 12.0-14.0 | – | – |
| Tempering Temperature (°C) | Tensile Strength(MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Brinell (HB) | Impact Charpy V (J) |
| Annealed * | 517 | 276 | 30 | 262 | – |
| Condition T ** | 758 | 586 | 18 | 248-302 | – |
| 204 | 1340 | 1050 | 11 | 388 | 20 |
| 316 | 1350 | 1060 | 12 | 388 | 22 |
| 427 | 1405 | 1110 | 11 | 401 | # |
| 538 | 1000 | 795 | 13 | 321 | # |
| 593 | 840 | 705 | 19 | 248 | 27 |
| 650 | 750 | 575 | 20 | 223 | 38 |
Contact us to get a quick quote for your requirement.
We ensures the highest quality stainless steel 416 tubing through stringent testing and certification procedures. Each tube undergoes a thorough inspection, including dimensional testing, mechanical property testing and corrosion resistance evaluation. Certificates of compliance with traceability and quality reports are provided to ensure efficiency and reliability.

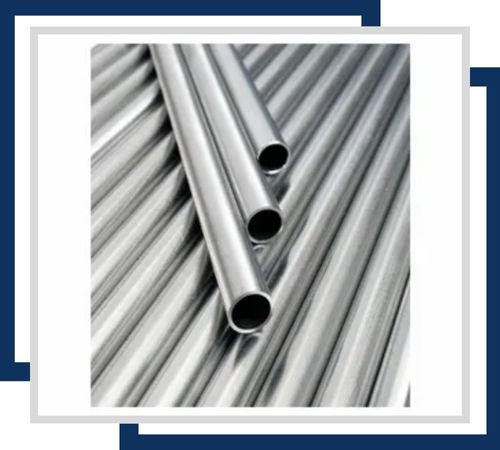

Available in sizes ranging from 0.25″ to 6″ outer diameter, 416 seamless tubing offers excellent corrosion resistance and machinability. Ideal for precision applications where smooth surfaces and dimensional accuracy are critical.

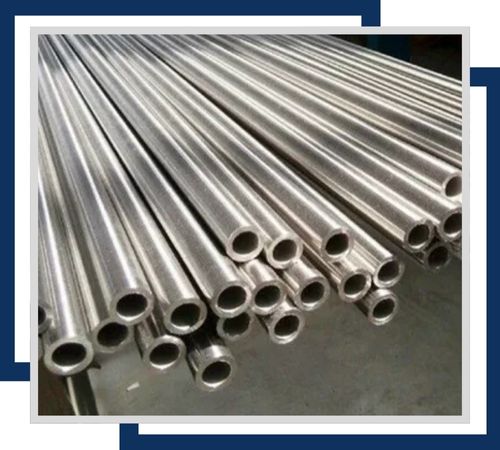

With dimensions typically ranging from 0.5″ to 24″ outer diameter, 416 welded tubing is corrosion-resistant and cost-effective for larger diameter applications. It is suitable for structural and non-critical fluid transfer purposes.

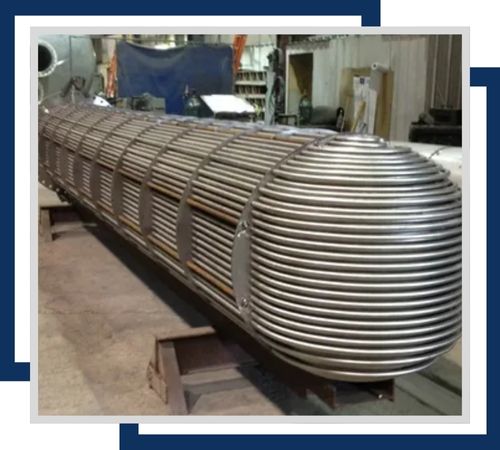

Available in sizes from 0.5″ to 2″ outer diameter, these tubes provide good corrosion resistance and thermal conductivity. They are used in heat exchangers where strength and durability are essential.

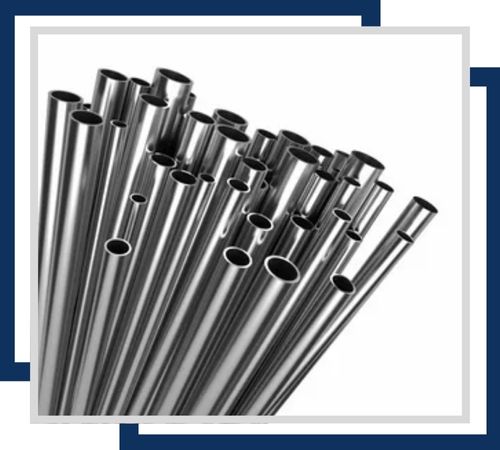

Ranging from 1/8″ to 1″ outer diameter, 416 instrumentation tubing offers excellent corrosion resistance and high strength. It is used in precise control and measurement applications in various industries.

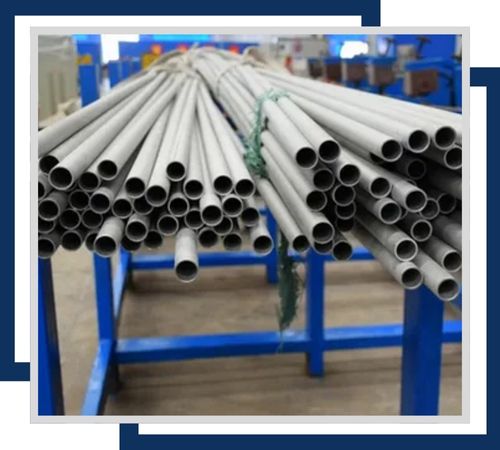

With sizes typically from 0.5″ to 5″ outer diameter, 416 boiler tubes provide excellent corrosion resistance and high-temperature performance. They are designed for use in steam boilers and other high-pressure environments.

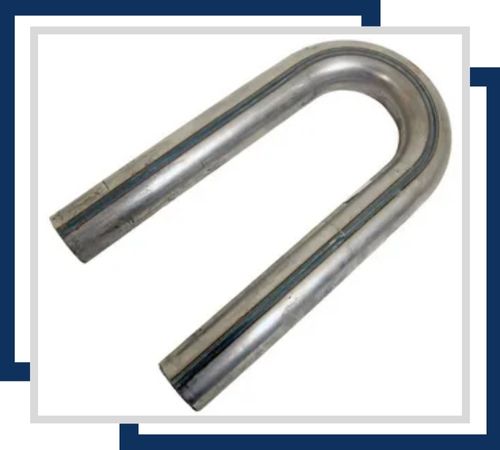

Available in dimensions from 0.5″ to 3″ outer diameter, 416 U-tubes are corrosion-resistant and ideal for heat exchangers where compact design and efficient heat transfer are required. Their U-shape allows for easier installation in tight spaces.

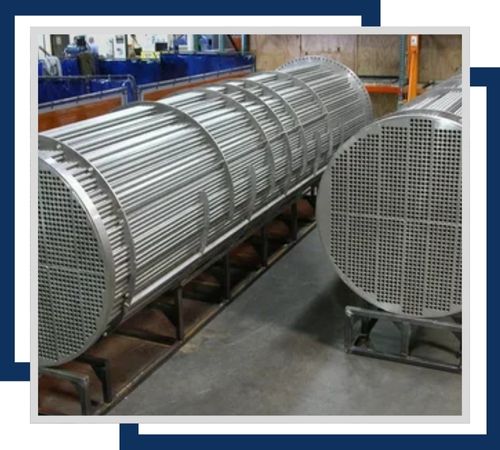

Ranging from 0.5″ to 2″ outer diameter, 416 condenser tubes offer good corrosion resistance and efficient heat transfer. They are used in condensers to cool steam and other fluids in power plants and industrial applications.

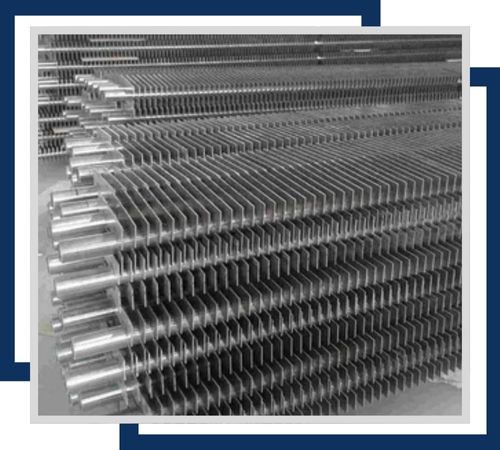

With sizes typically from 0.5″ to 3″ outer diameter, 416 fin tubes provide excellent corrosion resistance and enhanced heat transfer capabilities. They are used in heat exchangers and air coolers where maximizing surface area is critical for efficient operation.
Stainless Steel 416 Tubing finds its application where high strength coupled with corrosion resistance and machinability is required in industries. Chemical processing, hydraulic systems, chemical processing, automotive components, food manufacturing equipment are some of its applications. Systems requiring precise dimension and durability have tubing. They are used as valves, pumps, and fittings. Aerospace components, medical instruments, and even marine environments where conditions are challenging also find an application for tubing. Its excellent machinability makes it suitable for applications involving high-speed machining and intricate designs, ensuring performance and reliability across diverse industries.
