Shashank Stainless is the foremost stainless steel producers and dealers, serving various segments in Dubai, UAE, renowned for offering outstanding stainless steel tubings to industries and our portfolio also carries out Stainless Steel 347 Tubing. Excellent Corrosion-Resistance coupled with high-strength properties under temperature make the tubings in line with requirements from industry for high-performing tubing services. We are focused on offering products that have international standard quality and will provide exceptional performance to our clients in the UAE and other countries.
Stainless steel 347 tubing is primarily made of iron, chromium (17-19%), nickel (9-13%), and niobium (10x carbon content) to increase intergranular corrosion resistance It also contains manganese, silicon and carbon a little bit of. The material offers excellent mechanical properties, with 515 MPa (min) tensile strength, 205 MPa (min) yield strength and 40% (min) elongation at 50mm Ne surface resistance to high temperature oxidation and corrosion for justification for use in pharmaceutical applications, heat exchangers and other high-temperature environments
| Specifications | : | ASTM A/ASME SA249/A269/A270 |
| Dimensions | : | ASTM, ASME, and API |
| SS 304H Tubes Size | : | 1/8″NB TO 30″NB IN |
| Thickness | : | 1mm to 20mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10 |
| Finish | : | BA Finish inside and outside, Electropolished finish inside and outside |
| Type | : | Electropolished Pipes & Tubes |
| Form | : | Round, Square, Rectangular, Hydraulic Etc |
| Length | : | Up to 6 meters, custom cut lengths |
| Grade | C | Mn | Si | P | S | Cr | Cb | Ni | Fe |
| SS 347 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 20.00 | 10xC – 1.10 | 9.00 – 13.00 | 62.74 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000, MPa – 515 | Psi – 30000, MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We sets high standards regarding quality for stainless steel 347 tubing through multiple testing and evaluation procedures. Inspections are extensive and include determination of chemical compositions, mechanical testing, and testing by non-destruction methods on every product. Shashank also offers full documentation in the form of Mill Test Certification.

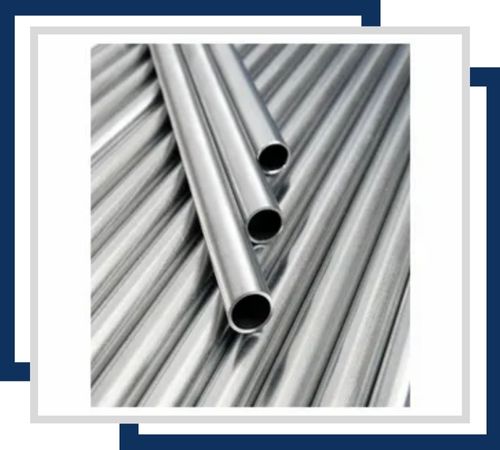

Offering excellent corrosion resistance, Stainless Steel 347 Seamless Tubing is known for its uniformity and strength. It typically comes in sizes ranging from 6mm to 350mm in diameter and lengths of up to 6 meters. Ideal for applications requiring high pressure and corrosive resistance.

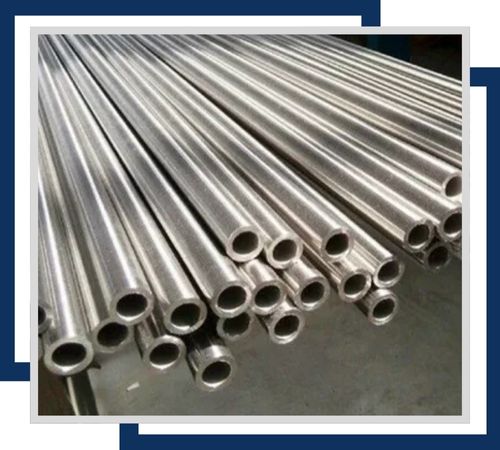

Stainless Steel 347 Welded Tubing provides superior resistance to chloride-induced stress corrosion cracking. Available in sizes from 10mm to 150mm in diameter and standard lengths of 6 meters. It is often used in industrial and chemical processing applications where weld strength is critical.

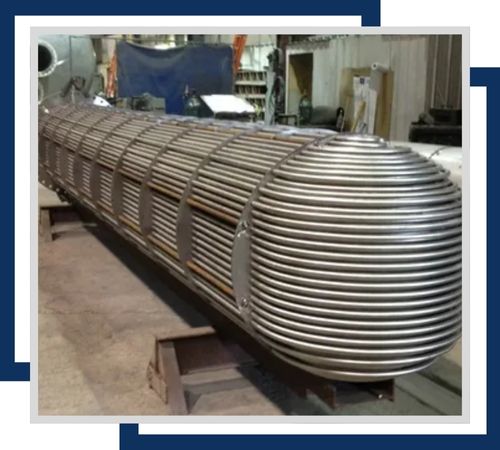

Featuring outstanding corrosion resistance, Stainless Steel 347 Heat Exchanger Tubes are used in demanding environments. Sizes typically range from 6mm to 50mm in diameter, with wall thickness varying from 1mm to 3mm. These tubes are designed for high temperature and pressure conditions.

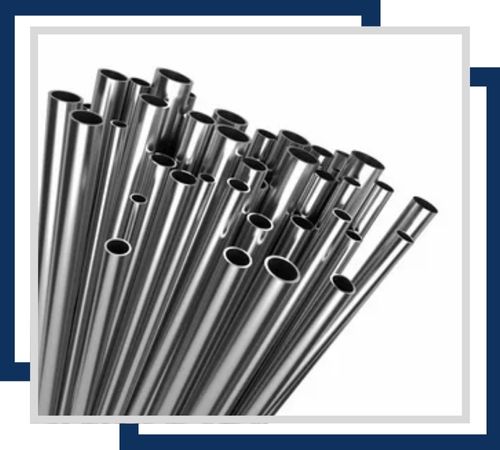

Stainless Steel 347 Instrumentation Tubing offers excellent resistance to corrosion and is ideal for precise measurement systems. Common sizes include 1/8″ to 1/2″ in diameter and lengths up to 6 meters. It is suitable for high-pressure applications and harsh environments.

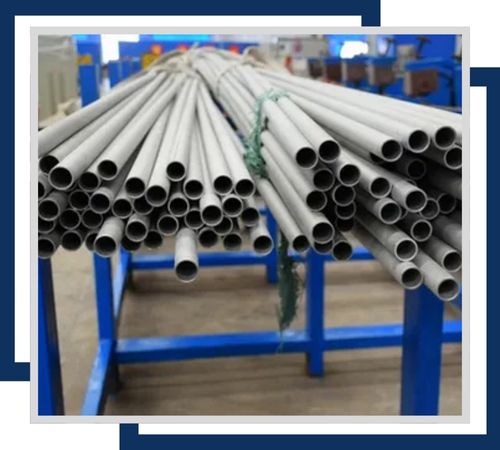

With superior resistance to both oxidation and corrosion, Stainless Steel 347 Boiler Tubes are used in high-pressure steam applications. Sizes typically range from 25mm to 100mm in diameter, with lengths of up to 6 meters. They are essential for maintaining efficiency in boiler systems.

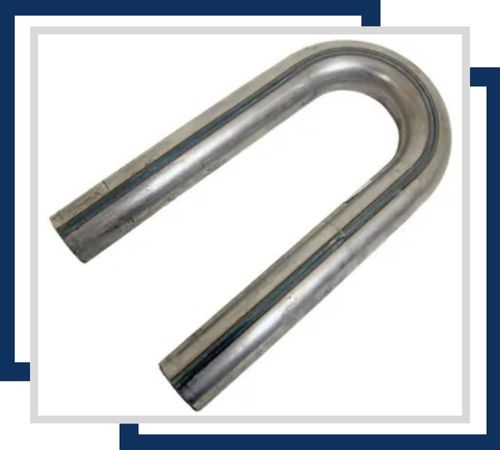

Stainless Steel 347 U-tubes provide excellent resistance to corrosive fluids and are commonly used in heat exchangers. Standard sizes range from 10mm to 100mm in diameter with various lengths. They are designed to handle thermal expansion and contraction in dynamic environments.

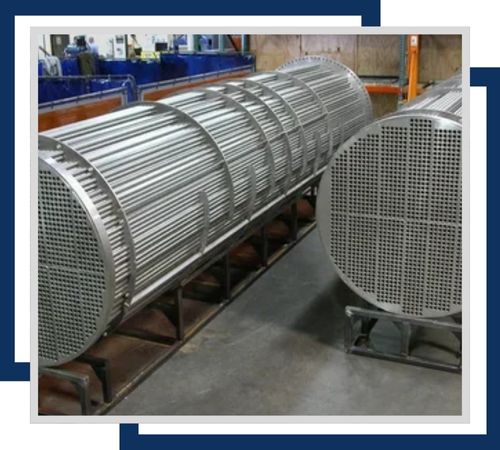

Stainless Steel 347 Condenser Tubes are used in marine and power generation applications, offering exceptional resistance to seawater and acidic environments. Sizes typically range from 10mm to 50mm in diameter and lengths up to 6 meters, providing durability and efficiency.

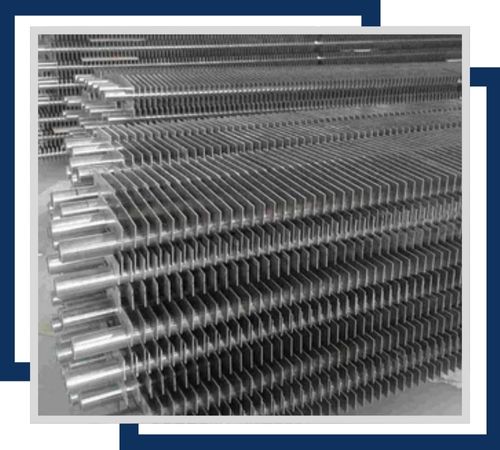

Stainless Steel 347 Fin Tubes are designed for enhanced heat transfer and corrosion resistance in air-cooled heat exchangers. They are available in various diameters, commonly 25mm to 50mm, with fin lengths customizable to specific requirements, ensuring effective cooling in challenging environments.
Stainless steel 347 tubing is widely used in those high corrosion applications and high temperature application. It finds itself virtually and widely used in applications like aerospace, chemical processing, energy generation, etc. Its intergranular corrosion resistance makes it ideal for heat exchangers, gas turbines and reactors. In addition, the SS 347 tubing is used in welded structures, pressure vessels, and pipelines. Its stability up to 900°C and oxidation and scaling resistance are important for reliable and long use in conditions in a strong.
