Shashank Stainless is a renowned manufacturer and supplier of high-quality stainless steel products in Dubai, UAE. Being one of the prominent high-performance material providers, it offers numerous stainless steel solutions in the market, ranging from Stainless Steel 15-5 PH Sheets and Plates, which are used by industries needing robust materials, performing very well in terms of strength, corrosion resistance, and durability. Shashank Stainless, committed to giving the best in terms of superior quality products, with precise specifications, exceptional customer service, and full documentation, would be the right choice for the stainless steel solution in Dubai, UAE, and beyond.
This SS 15-5 PH alloy is essentially stainless steel precipitation hardened and mainly comprised of 15-17% chromium, 3-5% nickel, 3-5% copper, with lesser quantities of manganese, silicon, and titanium. Mechanical properties of the said alloy are a tensile strength of 130-160 ksi (900-1100 MPa), a yield strength of 90 ksi (620 MPa) along with elongation to about 12-15%. SS 15-5 PH retains its mechanical properties at elevated temperatures and has excellent resistance to stress-corrosion cracking, which makes it suitable for demanding environments in aerospace and chemical industries.
| Specification : | ASTM A564 / ASME SA564 AMS 5643 |
| Standard : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length : | 1 to 6 Meters, Custom Cut Lengths |
| Form : | Round, Square, Hex (A/F), Rectangle Etc. |
| Grade | C | Cb+Ta | Cr | Cu | Fe | Mn | Ni | P | S | Si |
| SS 15-5 PH | 0.07 max | 0.15-0.45 max | 14.0-15.0 max | 2.5-4.5 max | Bal | 1.0 | 3.5-5.5 | 0.04 | 0.03 | 1.0 |
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
| SS 15-5 PH | 161,000 | 140,000 | 7.6% | C35 |
| Density | Electrical conductivity (% IACS) | Thermal conductivity (BTU-in/hr-ft²-°F) | Specific heat capacity | Thermal expansion (1/°F) | Melting Point (°F) |
| 0.282 | 1.72 | 97 | 0.11 | 0.00000589 | 2560 |
Contact us to get a quick quote for your requirement.

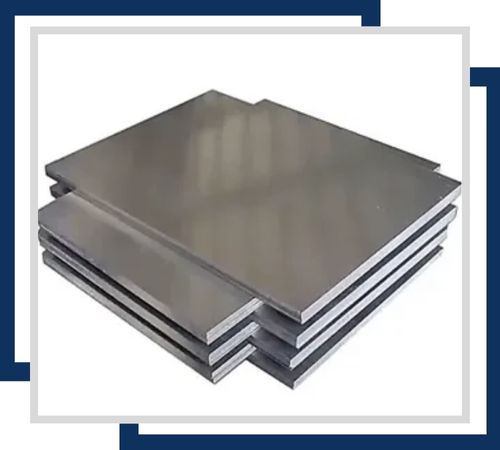

SS 15-5 PH cold-rolled sheets and plates are precision-formed stainless steel alloys that provide high strength, corrosion resistance and superior mechanical properties, Cold rolled for improved surface finish and tight tolerances. They are commonly used in high-performance applications such as aerospace, chemical processing, and construction materials, providing excellent durability and reliability

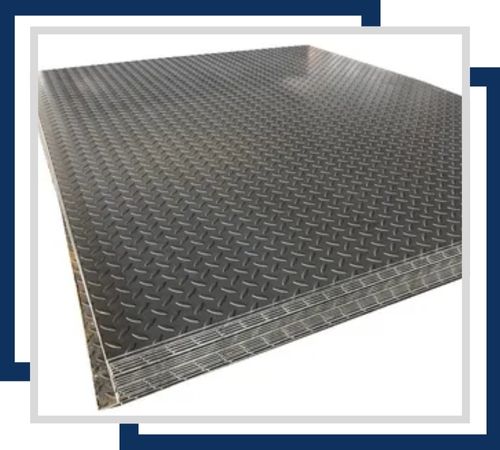

SS 15-5 PH is precipitation hardened sheet and plates, used in aerospace, marine, and chemical industries for high strength, corrosion resistance. They have excellent mechanical properties, hence provide durability along with resistance to stress corrosion cracking. Chequered plates are textured surface that provides improved grip and anti-slip properties.

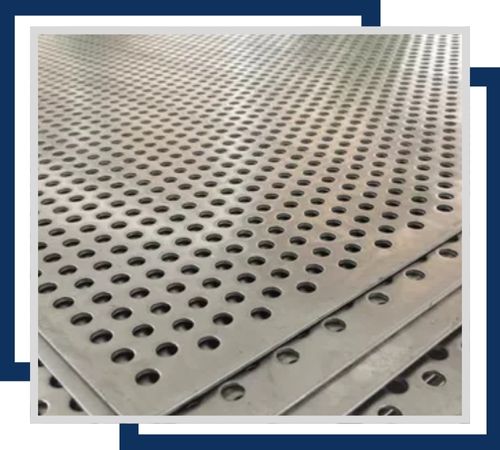

SS 15-5 PH is a good precipitation-hardening stainless steel available in sheet and plate form. Such perforated sheets and plates would offer a suitable combination of both strength and function with precise holes as filtration, venting, aesthetic design, retaining excellent mechanical properties.

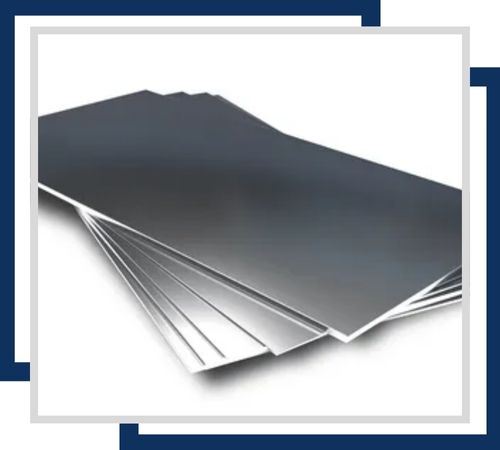

SS 15-5 PH (Precipitation Hardened) sheets and plates are high strength, corrosion resistant stainless steel. Shim sheets of SS 15-5 PH provide uniform thickness, providing excellent dimensional accuracy for gaps and locations in machinery or buildings for widespread applications in air, space, chemical and technology to increase performance.

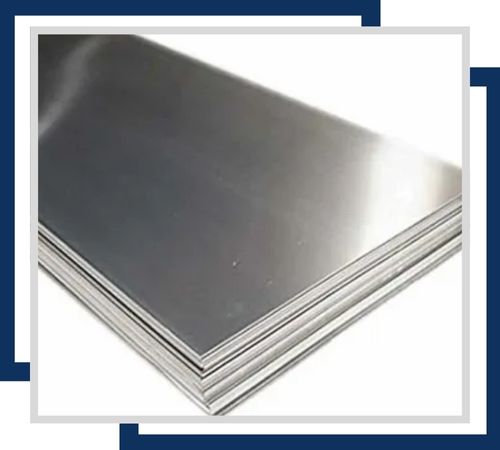

The polished SS 15-5 PH (Precipitation Hardened) plate is made of corrosion-resistant stainless steel with a smooth and luminous surface This plate provides excellent mechanical properties and resistance to compression which is difficult to crack. Commonly used in aerospace, marine and medical applications, they offer functional and aesthetic benefits along with excellent durability.
Shashank Stainless promises to serve customers with outstanding service, followed by detailed documents regarding high-quality sheets and plates for stainless steel 15-5 PH sheet and plate. Some of these basic documents consist of a commercial invoice, a packing list, fumigation certificate, a heat treatment chart, quality assurance plan, and the lab test report issued from NABL-approved labs. Such documents of the products bring us closer to the trust with the valued customer. In addition, we provide our Stainless Steel 15-5 PH Sheets and Plates with various test certificates, including MTC according to EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. These certificates represent our commitment to quality and satisfaction of the customer.
SS 15-5 PH sheet and plate are widely used by industries where high strength, corrosion resistance, and good weldability are required. Typical applications would include aerospace components like landing gear and structural components, turbine blades, and turbine seals. It is used in chemical processing equipment and valves and pumps, where resistance to aggressive environments is crucial. SS 15-5 PH can also be used in medical devices, marine components, and instrumentation areas where stress-corrosion cracking resistance and toughness are essential for long-term exposure.
