Shashank Stainless is one of the major Stainless Steel product manufacturer and suppliers situated in Dubai, UAE. Shashank Stainless has always maintained the various requirements of the customer and industry. Stainless Steel 201 sheets and plates by Shashank Stainless have achieved remarkable positions with various industries using it. Their focus has always been quality with reliability and efficiency for every service rendered to all types of customers in their esteemed concern. With a strong foot in the market of UAE, and with reputation for reliability, Shashank Stainless remains the best choice for customers looking for stainless steel products with excellence.
Stainless Steel 201 is an austenitic alloy with major elements such as iron, chromium (16-18%), nickel (3.5-5.5%), and manganese (5.5-7.5%). It offers good corrosion and oxidation resistance. It shows excellent formability, strength, and toughness and has good weldability and fabricability. Tensile strength is about 70-90 ksi (485-620 MPa) while yield strength is around 30-45 ksi (205-310 MPa). It exhibits moderate acid resistance making it suitable to applications such as kitchen equipment, architectural elements, and industrial machinery. Nevertheless, compared to higher-nickel grades, it has lower corrosion resistance.
| Specifications | : | ASTM A240 / ASME SA240 |
| Standard | : | JIS, AISI, ASTM, GB, DIN, EN |
| Range | : | 1000/1219/1500/2000mm,etc |
| Conventional common size | : | 4 inch X 8 inch ,10 inch x 5 inch |
| Thickness | : | 0.2 mm to 20mm |
| Specialize | : | Shim Sheet, Perforated Sheet, B. Q. Profile. |
| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate |
| Hardness | : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grades | : | SS 201 UNS S20100 |
| Grade | C | Mn | Si | P | S | Cr | Ni | N |
| SS 201 | 0.15 max | 5.5 – 7.5 | 100 max | 0.06 max | 0.03 max | 16.00-18.00 | 0.3 – 0.5 | – |
| Tensile strength (transverse at room temperature) | 685 MPa | 99400 psi |
| Tensile strength (longitudinal at room temperature) | 696 MPa | 101000 psi |
| Yield strength (transverse at room temperature) | 292 MPa | 42400 psi |
| Yield strength (longitudinal at room temperature) | 301 MPa | 43700 psi |
| Compressive yield strength | 365 MPa | 52900 psi |
| Elastic modulus | 197 GPa | 28573 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break (longitudinal at room temperature) | 56% | 56% |
| Elongation at break (transverse at room temperature) | 62.50% | 62.50% |
| Hardness, Rockwell B (transverse at room temperature) | 85 | 85 |
| Hardness, Rockwell B (longitudinal at room temperature) | 85 | 85 |
Contact us to get a quick quote for your requirement.

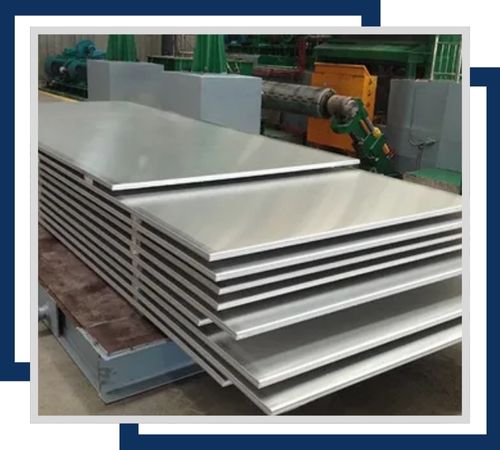

Stainless Steel 201 hot rolled plates are resistant to corrosion and are used in various structural applications. They are available in sizes from 6mm to 100mm thick, and can be ordered to any size.

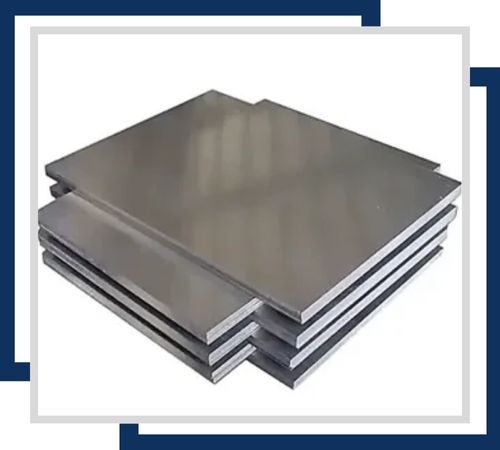

The stainless steel 201 cold rolled sheets offer excellent corrosion resistance and a smooth surface finish. They are available in the thickness range of 0.3mm to 3mm and widths ranging from 1000mm to 2000mm, thus applicable for various purposes.

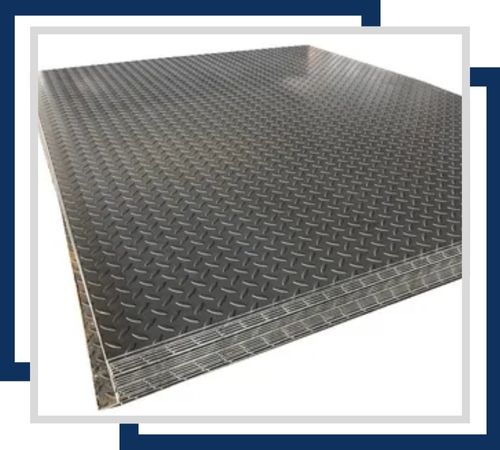

Stainless Steel 201 chequered sheets are used for flooring and other high-traffic areas due to their improved slip resistance and durability. These sheets are available in thicknesses of 1mm to 6mm and standard sizes of 1000mm x 2000mm.

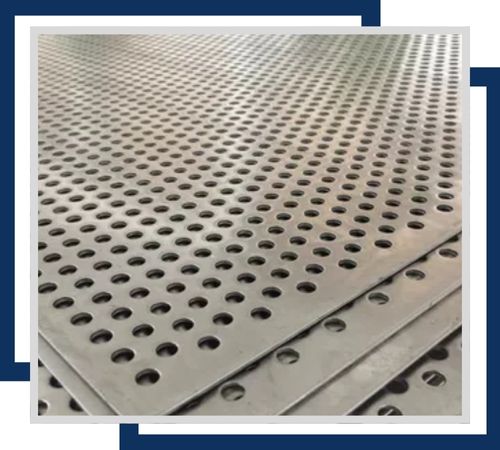

Stainless Steel 201 perforated sheets have outstanding corrosion resistance and find applications for purposes of ornamentation and function. They are also available with holes of various diameters and sizes, commonly within the range of 0.5mm to 6mm in thickness, and sizes from 1000mm x 2000mm.

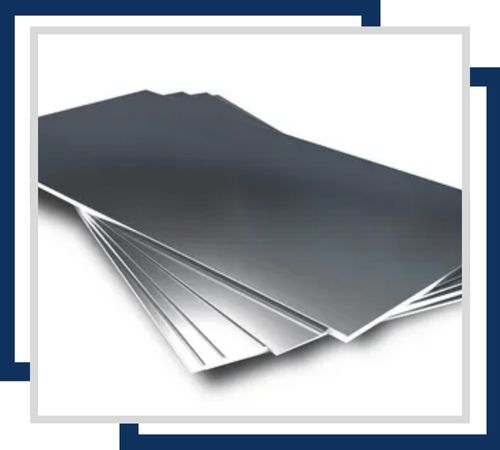

Stainless Steel 201 shim plates possess good resistance against corrosion and accurate thickness for spacing and alignments. It is generally available in thickness ranging from 0.1mm to 5mm along with sizes up to 1000mm x 2000mm.

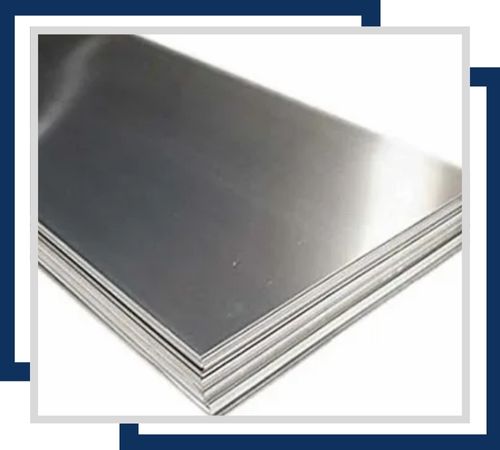

Stainless Steel 201 Polished Sheet and Plates have high-quality reflective finishes. It has good strength at high temperatures that offer abrasion and corrosion resistance in applications having processes.
Shashank Stainless assures hassle-free delivery while giving detailed documents regarding high-quality Stainless Steel 201 Sheets and Plates. It issues a commercial invoice, a packing list, fumigation certificate, heat treatment chart, quality assurance plan, and an NABL-approved lab test report that verify the genuinity and exceptional quality of products and help generate trust in its valuable customers. In addition, our Stainless Steel 201 Sheets and Plates are offered with various test certificates, which include MTC according to EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. The certifications show how we are completely customer-centric as well as strongly committed to quality products.
The application of Stainless Steel 201 sheets and plates are in situations requiring moderate corrosion resistance and strength. It is utilized in kitchen appliances, cookware, sinks, and countertops for its formability and resistance to staining. Its architectural uses are in wall cladding, railings, and roofing. Another application is industrial machinery, automotive components, and storage tanks. It is cost-effective and, thus, can be used in both residential and commercial environments.
