Shashank Stainless is one of the largest manufacturers and suppliers of stainless steel products based in Dubai, UAE. Being renowned for its excellence-based services, we deal with assorted stainless steel solutions. Among these, we provide premium Stainless Steel 317 sheets and plates. Our products are really durable with corrosion resistance and superior finish, thus find their applications in a number of industries. Committed to quality and customer satisfaction, Shashank Stainless ensures timely delivery and reliable service, catering to clients across diverse sectors in the UAE and beyond.
SS 317 is a type of austenitic steel which contains about 18% chromium, 14% nickel, and 3-4% molybdenum, with good pitting and crevice corrosion resistance in an acidic environment. The mechanical properties of this material are tensile strength in the range of 515-827 MPa, yield strength of about 205 MPa, and 40% elongation. This material has good resistance to pitting and crevice corrosion and can be applied in the chemical processing, petrochemical, as well as marine industries. Stainless Steel 317 sheets and plates provide strength, durability, and superior corrosion resistance.
Specifications: ASTM A240 / ASME SA240
Dimensions: ASTM, ASME, and API.
Width: 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Thickness:4mm-100mm
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface Finish: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc
Form: Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
Fe |
|
SS 317 |
0.08 max |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
18.00 – 20.00 |
3.00 – 4.00 |
11.00 – 15.00 |
57.845 min |
|
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
|
7.9 g/cm3 |
1400 °C (2550 °F) |
Psi – 75000, MPa – 515 |
Psi – 30000, MPa – 205 |
35 % |
Contact us to get a quick quote for your requirement.

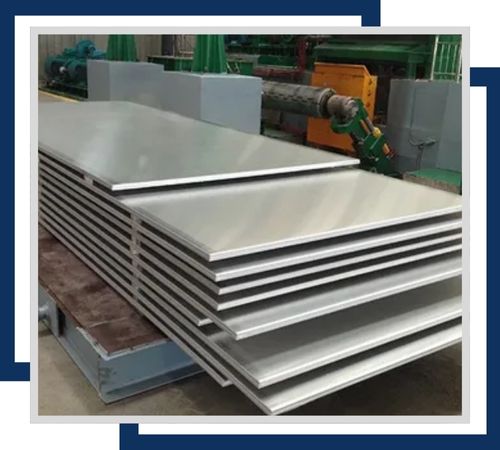

Stainless Steel 317 Hot Rolled Sheet and Plates provide excellent strength along with excellent corrosion resistance for high-temperature and aggressive chemical environments. They are used in industrial applications requiring durability and toughness.

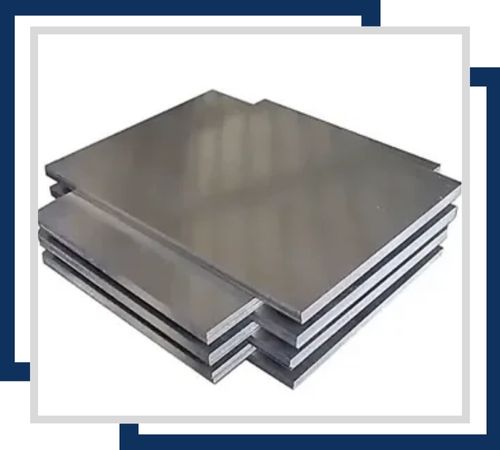

Stainless Steel 317 Cold Rolled Sheet and Plates provide a smooth surface finish and precise dimensions, suitable for any applications in chemical, marine, pharmaceutical industries with high requirements of superior corrosion resistance and aesthetic quality.

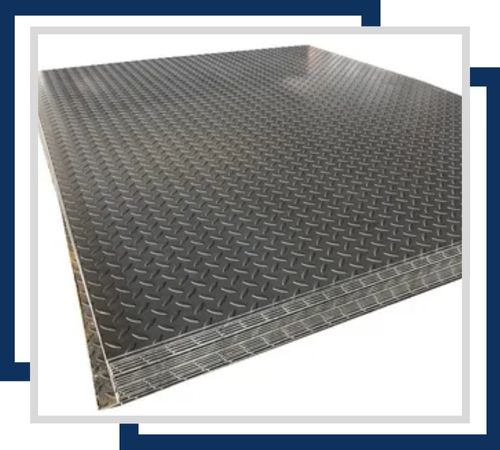

Stainless Steel 317 Chequered Sheet and Plates are used in slip-resistant and long-lasting applications like flooring and stair treads. They are excellent corrosion-resistant materials, which can be used for both industrial and decorative purposes.

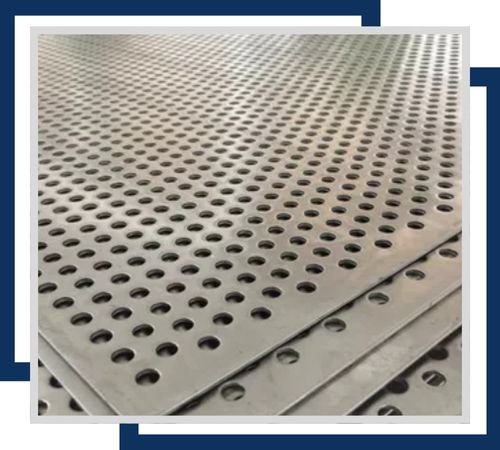

Stainless Steel 317 Perforated Sheet and Plates are used for filtration, ventilation, and architecture. It incorporates strength with the corrosion resistance capabilities of the plates along with useful perforations; hence, ideal for custom design and structural purposes in aggressive applications.

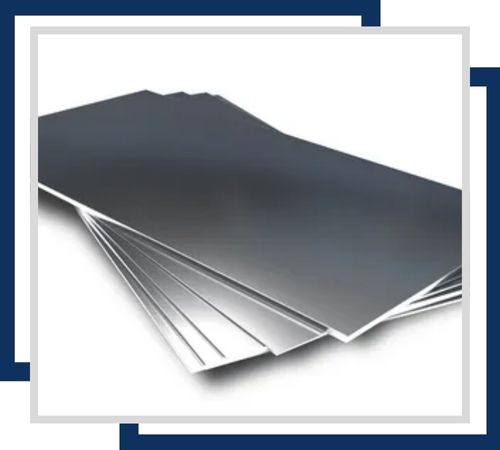

Stainless Steel 317 Shim Sheet and Plates are deployed for precision spacing and alignment within machinery and equipment. It shows high strength as well as resistant to corrosion features, thus sustaining stability and endurance in critical operations.

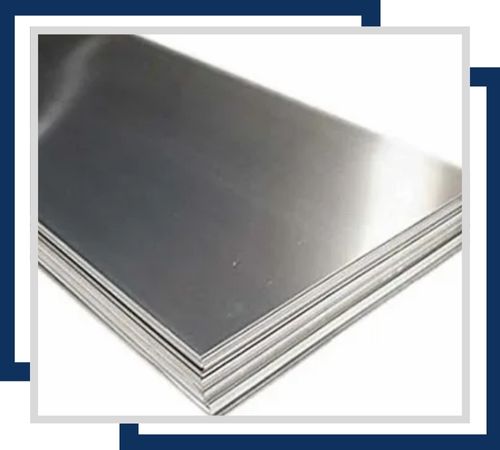

Stainless Steel 317 Polished Sheet and Plates have a very high-quality, reflective finish which is suitable for decorative and architectural applications. These have excellent corrosion resistance and are used in the environments where the appearance and durability are key requirements.
Stainless Steel 317 sheets and plates find extensive application in such industries requiring excellent corrosion resistance combined with strength. They are suited for use in chemical processing, petrochemical, pharmaceutical, etc., where aggressive chemicals are commonly exposed to high temperatures. The material is also used in conditions of marine exposure, heat exchangers, and pulp and paper production because of the excellent resistance to pitting and crevice corrosion.
