Shashank Stainless is one of the best stainless steel product manufacturers and suppliers in Dubai, UAE. The company offers stainless steel products under SS 422 sheets and plates with guaranteed strength and accurate engineering, suiting all various types of industrial sectors. After decades of expertise, we at Shashank Stainless maintain standards that guarantee only quality and reliability, hence satisfying the customers. SS 422 sheets and plates are particularly known for having excellent strength and corrosion resistance besides being versatile and suitable for all kinds of industrial applications.
SS 422 (Stainless Steel 422) is a martensitic stainless steel alloy featuring maximum strength and hardness. It consists of about 12-14% chromium, 0.15-0.20% carbon, and trace amounts of molybdenum and nickel. Based on this composition, the alloy provides excellent resistance to corrosion in general to very mildly corrosive service conditions. The wear resistance is good and ductility average with mechanical properties having potential for high strength and hardness through suitable heat treatments. It is often applied in high strength applications such as machinery, valves, and in components of a turbine. Its strength and resistance to corrosion have a good balance.
| Specifications : | ASTM A240 / ASME SA 240 |
| Dimensions : | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, IS & Custom Chemistry |
| Production Route : | Hot Rolled, Cold Rolled |
| Size : | Width from 100mm to 3000mm ; Length from 500mm to 12000mm |
| Thickness : | 0.1mm to 400mm |
| Delivery Condition : | As Rolled, Annealed, Quenched and Tempered, Normalized |
| Surface Finish : | Plain, Brushed, Cladded |
| Cr 11.0 – 12.5% | Mo 0.9 – 1.30% | W 0.9 – 1.30% | Mn 0.50 – 1.0% | Ni 0.50 – 1.0% | |||||
| Si 0.50% Max | V 0.20 – 0.30% | C 0.20 – 0.25% | P 0.025% Max | Fe Balance |
| Property | Minimum | Maximum | |||||||
| Yield Strength Range (Rp0.2 Offset) (ksi) | 97 | 130 | |||||||
| Tensile Strength Range (Rm) (ksi) | 130 | 160 | |||||||
| Elongation (AL=5 x Ø) | 15.0% | 17.0% | |||||||
| Hardness, Rockwell (C) | – | 21 | |||||||
| Modulus of Elasticity (GPa): 76 | |||||||||
| Machineability General Index: – | |||||||||
| Density (lb/ft3) | Electrical conductivity (% IACS) | Thermal conductivity (BTU/h-ft-°F) | Specific heat capacity (BTU/lb-°F) | Thermal expansion (µm/m-K) |
| .2817 | 4.7% | 14 | 0.11 | 10 |
Contact us to get a quick quote for your requirement.

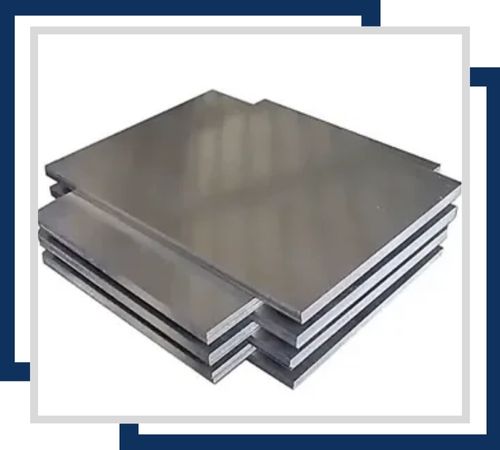

SS 422 cold rolled sheets are stainless steel material that is strong, durable, and furnished with a smooth surface. These sheets are available in various thicknesses, from 0.1mm to 6mm and can be manufactured with the desired width and length for any industrial usage.

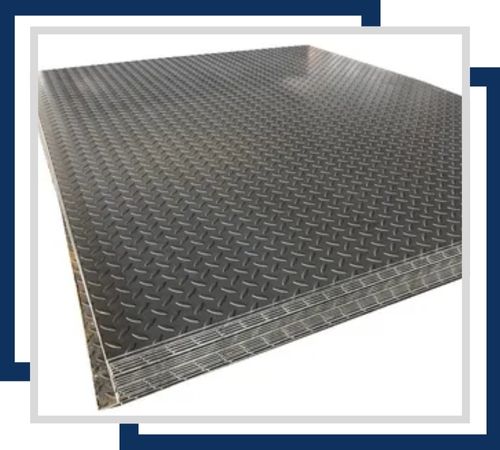

SS 422 chequered plates are highly durable stainless steel sheets with a raised design that increases grip and limits slipping. Used for flooring, walkways, and other industrial applications, chequered plates vary in sizes but are usually 2mm to 8mm thick.

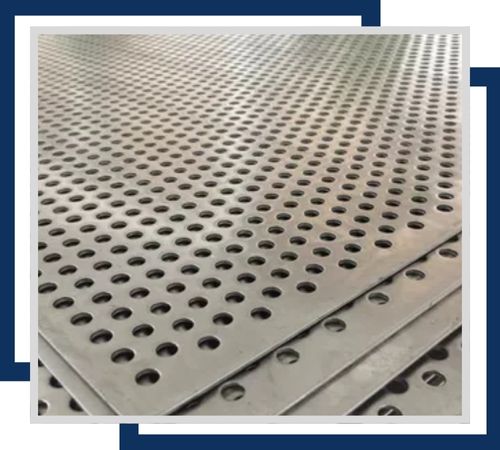

SS 422 perforated plates are stainless steel sheets designed with precision holes for industrial use. The durability and corrosion resistance of these plates are excellent and usually available in sizes from 0.5mm to 12mm in thickness and in a customizable hole pattern, making them versatile in performance.

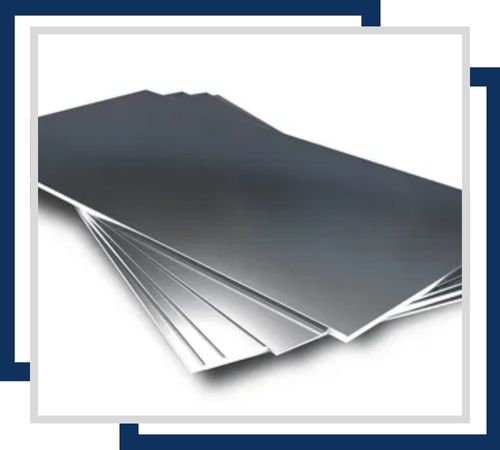

These are thin sheets in stainless steel 422, precision engineered to withstand excellent corrosion resistance and high temperatures. They are usually found in sizes 0.1mm to 5mm in thickness. There is always a need to make precise alignment and gap filling in several industrial applications.
SS 422 Polished Plates are most resistant to corrosion yet very strong and offer a finishing finish quality. Known to be of high quality, the plates vary in size, and may differ in thickness that can range from 3mm up to 100mm, thus giving versatility to various industries.
Shashank Stainless is committed to delivering a seamless customer experience by providing complete documentation for the Stainless Steel 422 Sheet and Plate products, ensuring top-notch quality. Commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plans, and NABL-approved lab test reports are given from Shashank Stainless. These papers are proof of our authenticity and superior quality products. Furthermore, we provide test certificates for our Stainless Steel 422 Sheets and Plates, which include MTC as per EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third-Party Inspection Certificates, which demonstrate our customer-centric approach and excellence.
SS 422 (Stainless Steel 422) sheets and plates are widely used in high-strength applications along with hardness, with moderate resistance to corrosion. Common applications are components of the aerospace, automobile, and chemical industries. Commonly, this is applied for turbine blades, valves, and pumps. In addition, it is applied in producing components that wear off easily, for example shafts and gears. Owing to its high machinability along with high resistance to heat, SS 422 is an appropriate alloy to use in pressure vessels, fasteners of high tensile strength, and industrial products that demand more strength and functionality.
