Stainless steel 904L is an alloy mainly composed of 19-23% chromium, 23-28% nickel, 4-5% molybdenum, and trace amounts of copper and titanium. This superior material provides excellent corrosion resistance with chloride resistance and is extremely durable at high and low temperatures Its characteristics include exceptional hardness, high strength and excellent weldability. The advantage of 904L stainless steel is excellent resistance to pitting and crevice corrosion, making it ideal for harsh environments such as chemical processing and marine applications.
| Standard | ASTM A240, ASME SA240 |
| Thickness | 0.1mm to 12 mm Thk |
| Sheet and Plate Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching. |
| Finish | Hot rolled (HR), Cold rolled (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated). |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2 max | 1 max | 0.040 max | 0.030 max | 19 – 23 | 4 – 5 | 23 – 28 | 1 – 2 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
Contact us to get a quick quote for your requirement.
At Shashank Stainless, we are proud to be the largest supplier, manufacturer, and exporter of Stainless Steel 904L Sheet and Plates in Dubai, UAE. Our state-of-the-art solutions address all your piping needs. With advanced production facilities in the UAE, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring that stock is readily available to meet your demands.

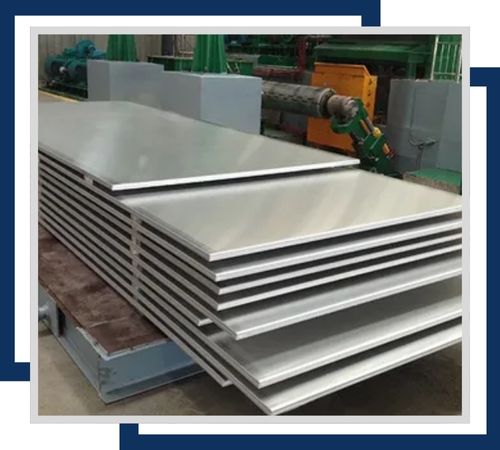

Stainless Steel 904L Hot Rolled Sheets offer excellent resistance to corrosion in harsh environments, including acids and chlorides. Typically available in thicknesses ranging from 3 mm to 25 mm and widths up to 2 meters, these sheets are used in heavy-duty applications requiring robust structural integrity.

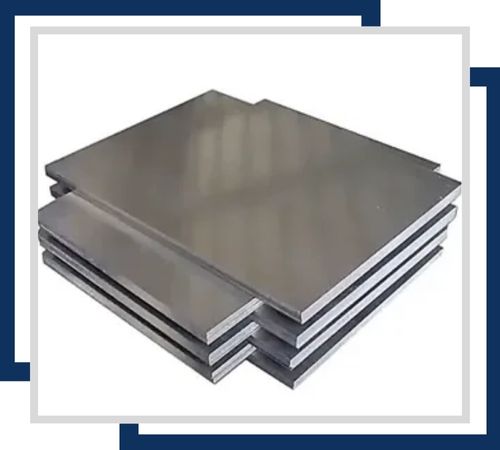

Stainless Steel 904L Cold Rolled Plates provide superior corrosion resistance against strong acids and chlorides. They are available in thicknesses from 0.5 mm to 3 mm and widths up to 1.5 meters, offering a smooth surface finish suitable for precision applications and aesthetic purposes.

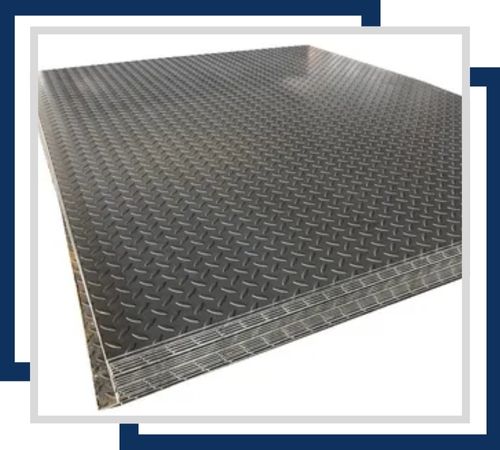

Stainless Steel 904L Chequered Sheets feature a patterned surface that enhances slip resistance while maintaining excellent corrosion resistance. Commonly available in thicknesses of 2 mm to 6 mm and dimensions up to 1.2 meters in width, these sheets are ideal for flooring and other high-traction surfaces.

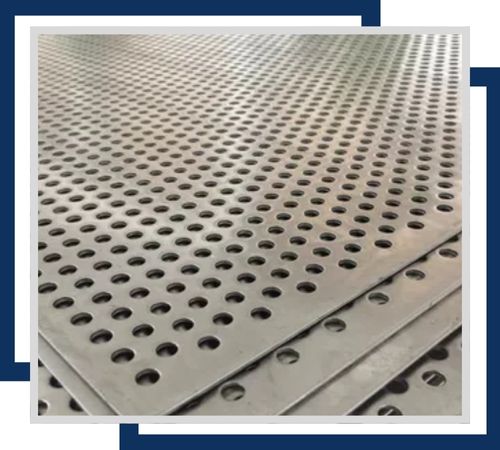

Stainless Steel 904L Perforated Plates combine corrosion resistance with custom perforation patterns for ventilation and filtration. They come in thicknesses ranging from 1 mm to 8 mm and can be sized up to 1.2 meters by 2.4 meters, suitable for industrial and architectural applications.

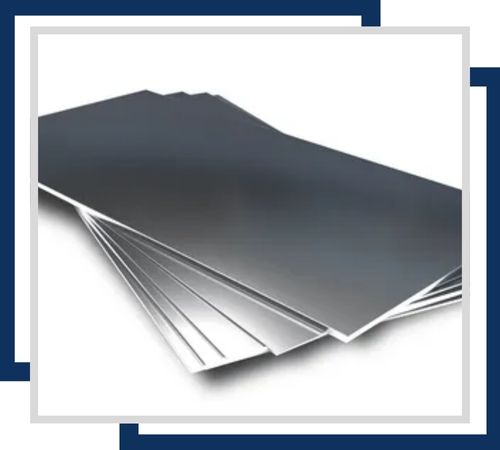

Stainless Steel 904L Shim Sheets offer excellent resistance to aggressive environments while providing precise thicknesses for various applications. Typically available in thicknesses from 0.1 mm to 3 mm and dimensions up to 1 meter by 2 meters, these sheets are used for gap filling and alignment.

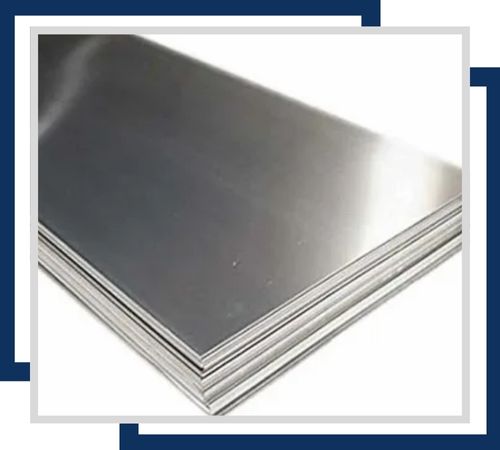

Stainless Steel 904L Polished Plates feature a high-quality finish with outstanding corrosion resistance, making them ideal for decorative and high-end applications. They are available in thicknesses from 1 mm to 50 mm and dimensions up to 2 meters by 6 meters, offering aesthetic appeal and durability.
Shashank Stainless is a leading supplier and stockist of high-quality stainless steel 904L sheet and plates in Dubai, UAE. Our products are widely used in various applications, and we are committed to delivering excellent service, resulting in high customer satisfaction. Our unique finishing techniques further distinguish us in the stainless steel industry. We are dedicated to consistently providing superior products and effectively meeting our customer’s needs.
Stainless steel 904L sheets and plates are known for their excellent corrosion resistance and high durability, making them ideal for harsh environments The most common applications are chemical processing, marine environments around, and oil and gas industries. It is used in heat exchangers, pollution control devices, and aerospace. Their high nickel-chromium content provides excellent durability and resistance to chloride-induced stress corrosion, which is critical to maintaining integrity under extreme conditions.
