Stainless Steel 420 is a martensitic stainless steel composed primarily of 12-14% chromium and an excess of 0.15% carbon. Provides superior strength and moderate corrosion resistance. Features include excellent hardness, corrosion resistance and thermal stability. The advantages of SS 420 include excellent machinability, high abrasion resistance, and corrosion resistance in sensitive environments. It is commonly used in products such as molds, surgical instruments and industrial equipment.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| Grade | C | Mn | Si | P | S | Cr | Ni |
|---|---|---|---|---|---|---|---|
| 420 | 0.15 max | 1.00 max | 1.00 max | 0.04 max | 0.03 max | min: 12.0 max: 14.0 | – |
| Tempering Temperature (°C) | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Brinell (HB) |
|---|---|---|---|---|
| Annealed * | 655 | 345 | 25 | 241 max |
| 399°F (204°C) | 1600 | 1360 | 12 | 444 |
| 600°F (316°C) | 1580 | 1365 | 14 | 444 |
| 800°F (427°C) | 1620 | 1420 | 10 | 461 |
| 1000°F (538°C) | 1305 | 1095 | 15 | 375 |
| 1099°F (593°C) | 1035 | 810 | 18 | 302 |
| 1202°F (650°C) | 895 | 680 | 20 | 262 |
Contact us to get a quick quote for your requirement.
At Shashank Stainless, we are proud to be the largest supplier, manufacturer, and exporter of Stainless Steel 420 Sheet and Plates in Dubai, UAE. Our state-of-the-art solutions address all your piping needs. With advanced production facilities in the UAE, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring that stock is readily available to meet your demands.

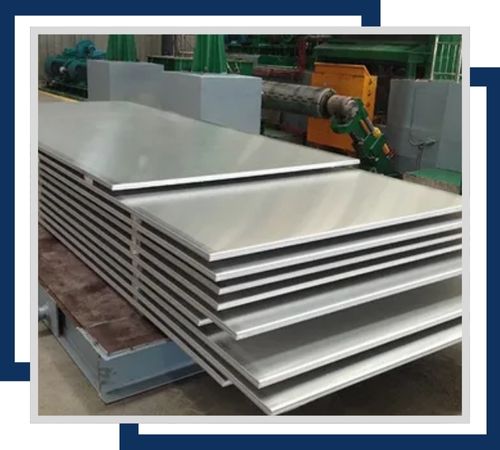

Stainless Steel 420 hot rolled sheets offer excellent corrosion resistance and are known for their durability. Available in thicknesses ranging from 3mm to 12mm, these sheets are ideal for applications requiring high strength and good machinability.

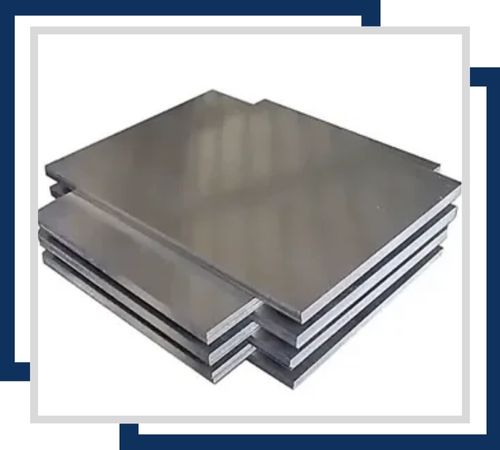

Stainless Steel 420 cold rolled plates provide superior corrosion resistance and a smooth finish. Typically available in thicknesses from 0.5mm to 6mm, these plates are used in precision applications where dimensional accuracy and a fine surface finish are essential.

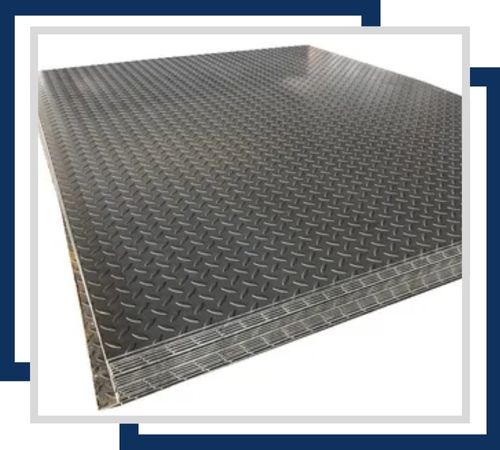

Stainless Steel 420 chequered plates combine excellent corrosion resistance with a textured surface for slip resistance. Available in thicknesses from 2mm to 8mm and various patterns, they are widely used in flooring and safety applications.

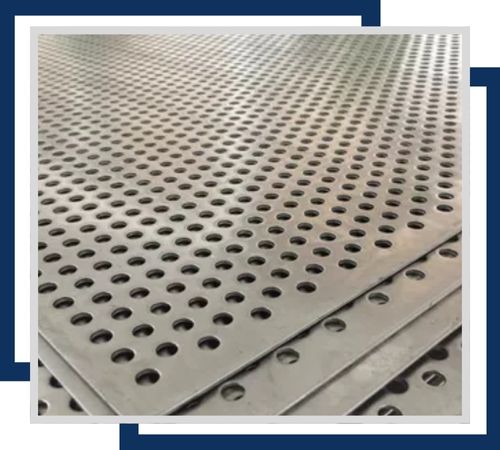

Stainless Steel 420 perforated sheets offer good corrosion resistance and are designed with uniform holes for ventilation and aesthetics. Commonly available in thicknesses from 1mm to 5mm, they are used in filtering and architectural applications.

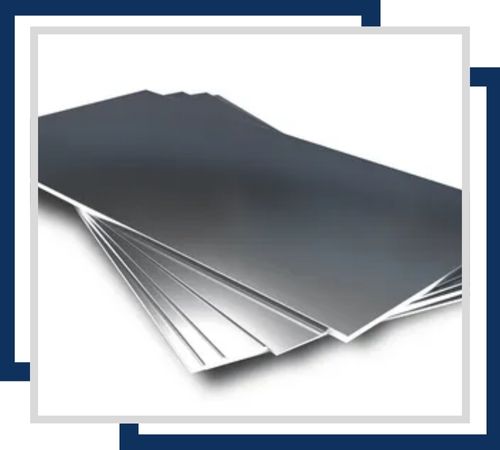

Stainless Steel 420 shim sheets are known for their excellent corrosion resistance and precision. Typically available in thicknesses as thin as 0.1mm to 1mm, they are used for precise spacing and alignment in various engineering and manufacturing applications.

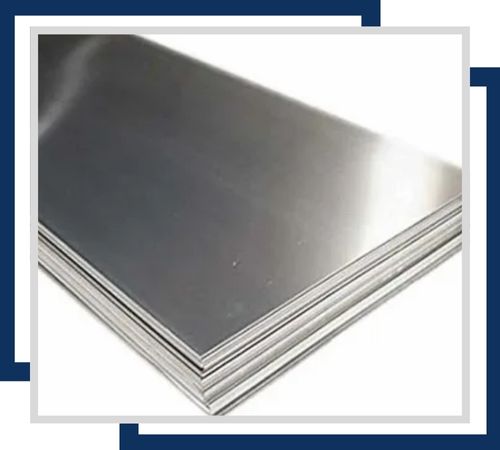

Stainless Steel 420 polished plates offer high corrosion resistance and a reflective finish. Available in thicknesses from 1mm to 10mm, they are used in decorative and high-visibility applications where aesthetic quality and resistance to oxidation are important.
Shashank Stainless is a leading supplier and stockist of high-quality stainless steel 420 sheet and plates in Dubai, UAE. Our products are widely used in various applications, and we are committed to delivering excellent service, resulting in high customer satisfaction. Our unique finishing techniques further distinguish us in the stainless steel industry. We are dedicated to consistently providing superior products and effectively meeting our customer’s needs.
Stainless Steel 420 is a high carbon martensitic stainless steel known for its durability and corrosion resistance. It is commonly used in applications requiring wear resistance and strength to produce cutlery, surgical instruments and valves Its excellent polishing ability makes it ideal for high decorative and finishing applications. In addition, stainless steel 420 is used in minimal scrap, including tools and dies, as well as machinery and automotive parts that require durability and strength.
