Shashank Stainless is the well-established manufacture and supplier in Dubai, UAE, which deals in providing premium quality as well as depends on the reliable service of the stainless steel items. The Company provides an assorted range of Stainless Steel Sheets, Stainless Steel Plates and Stainless Steel coils to various segments like construction industries, automobile sector, and other engineering industries as well. Its specialty lies in the use of Stainless Steel 17-7 PH sheets and plates. This makes it ideally suited to demanding sectors like aerospace, military, and high-performance engineering applications.
The 17-7 PH is an alloy of stainless steel, mainly consisting of iron, chromium, 16-18% nickel, 6.50-7.75%, trace aluminum, and 0.75-1.50% .It has a high strength as well as it is resistant to fatigue and oxidation. This can make 17-7 PH suitable for aerospace, automotive, and industrial applications. In the case of this alloy, the mechanical properties are improved upon heat treatment for hardening. It is dimensional stable, which gives it desirable properties. Components subjected to the environment have its high tensile strength and corrosion resistance as the other benefits.
| Element | Content (%) |
|---|---|
| Chromium, Cr | 16-18 |
| Nickel, Ni | 6.50 – 7.75 |
| Manganese, Mn | 1 max |
| Silicon, Si | 1 max |
| Aluminum, Al | 0.75 – 1.50 |
| Carbon, C | 0.09 max |
| Phosphorous, P | 0.040 max |
| Sulfur, S | 0.030 max |
| Iron, Fe | Balance |
| Property | 17-7PH ≤ 0.010 inch thick | 17-7PH > 0.010 inch thick |
|---|---|---|
| Yield Strength, min. (ksi) | 65 | 55 |
| Tensile Strength, min. (ksi) | 150 | 150 |
| Elongation, min. (%) | – | 20 |
| Hardness, max. (Rb) | – | 92 |
Contact us to get a quick quote for your requirement.

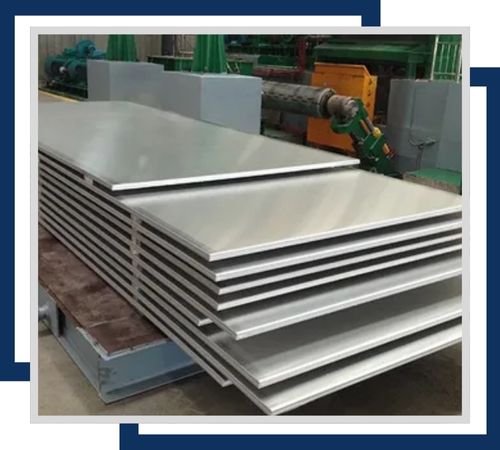

Stainless Steel 17-7 PH Hot Rolled Plates are characterized by excellent strength and hardness. Available in a range of sizes and thicknesses from 3mm to 120mm, the plates have good corrosion resistance and can be used under high-stress conditions.

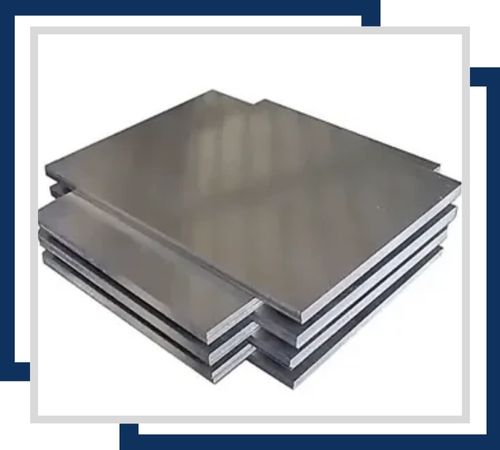

Stainless Steel 17-7 PH Cold Rolled Sheets have a very smooth surface finish and high precision. These sheets are available in a range of thickness from 0.2mm to 6mm. The sheets possess excellent corrosion resistance and are useful for applications that require tight tolerances.

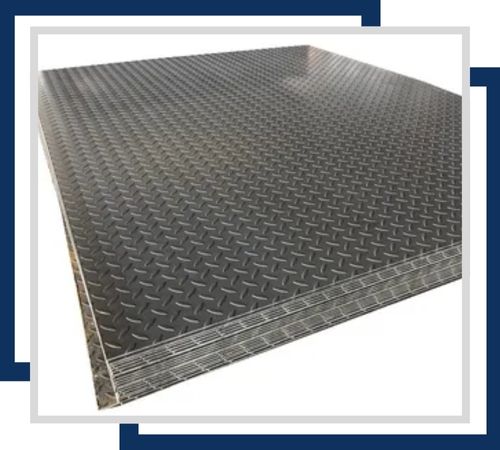

Stainless steel 17-7 PH chequered plates have a raised pattern that increases the grip and safety. It is commercially available from 2mm to 12mm in thicknesses. It is applied in flooring and other anti-skid applications. Their good corrosion resistance suits them well for both industrial and marine environments.

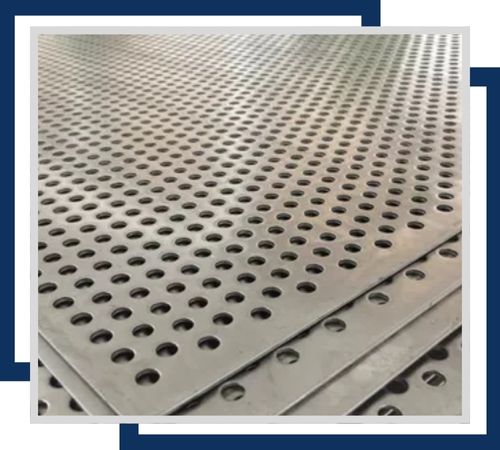

The Stainless Steel 17-7 PH Perforated Sheets have many hole sizes and patterns for various filtration and ventilation applications. They are typically in the thickness of 0.3mm to 3mm. Corrosion resistance allows these sheets to be long-lasting in all uses.

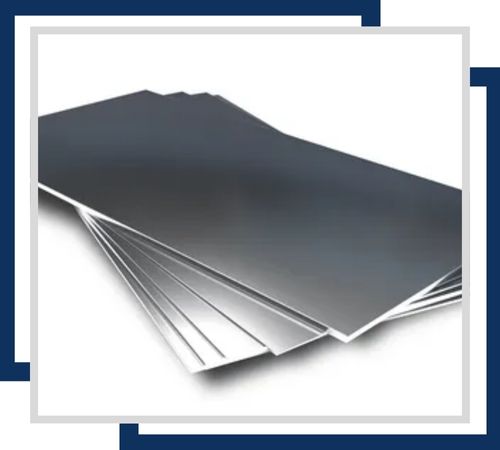

Stainless Steel 17-7 PH Shim Sheet is a thin, precision-cut sheet for spacing and alignment in machinery. It is available in 0.05mm to 3mm thicknesses, giving excellent corrosion resistance. Its sheets ensure reliable performance in very demanding mechanical environments.

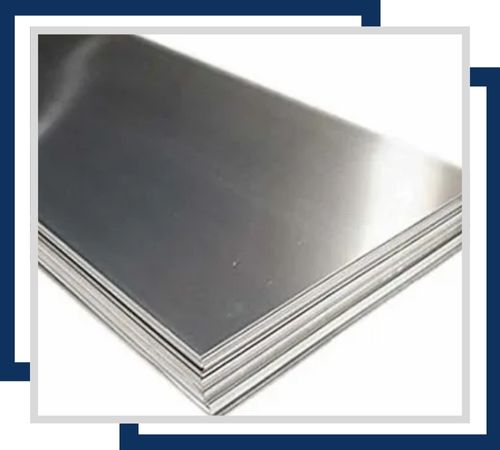

Stainless Steel 17-7 PH Polished Plates have a bright polish finish. They come in thickness from 3mm up to 100mm. These plates exhibit strong corrosion resistance. They are good for decorative and sanitary applications.
Shashank Stainless is committed to providing a great customer experience by offering full documentation for its high-quality Stainless Steel 17-7 PH Sheets and Plates. We provide important documents like commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports to prove authenticity and give strength to our superior quality. Moreover, our Stainless Steel 17-7 PH Sheets and Plates are provided with many test certificates like MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. These records assuredly ensure our customer satisfaction and constant product excellence.
Stainless Steel 17-7 PH Sheets and Plates are widely used in industries requiring high strength and corrosion resistance. Its excellent fatigue and tensile properties have made stainless steel 17-7 PH Sheets and plates for general applications in various fasteners, brackets, landing gear parts, aerospace components, structural auto application, and so forth. Furthermore, this alloy is suited for the production of springs, valves, and diaphragms, as it does not lose strength at elevated temperatures. 17-7 PH has also been utilized for military and defense purposes.
