Shashank Stainless is one of the major manufacturing and supplying firms of high quality stainless steel-based products from Dubai, UAE. We are focused on stainless steel 304H sheets and plates, offering corrosion-resistant material along with excellent tensile strength at elevated temperatures, suitable for the chemical, petrochemical, and power plants industries, delivering superior strength and performance. Shashank Stainless focuses on precision, reliability, and timely delivery with the aim of catering to the diversified needs of clients in the UAE and all over the world with the highest standards of quality and service.
Stainless Steel 304H is high-carbon-grade 304 stainless steel, which allows for strength increase at elevated temperature. It comprises 18-20% Cr, 8-10.5% Ni, and up to 0.04 to 0.10% Carbon, which boosts its resistance to creep and rupture at elevated temperatures. The material contains excellent corrosion resistivity, as well as high weldability and formability. It is one of the mostly used materials under high-temperature conditions, heat exchangers, and vessels under pressure because of its extraordinary mechanical properties; it has got tensile strength, hardness, and durability high under extreme situations.
| Standard | ASTM A240, ASME SA240 |
| Thickness | 0.1mm to 12 mm Thk |
| Sheet and Plate Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching. |
| Finish | Hot rolled (HR), Cold rolled (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated), Galvanized etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 10.5 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
Contact us to get a quick quote for your requirement.

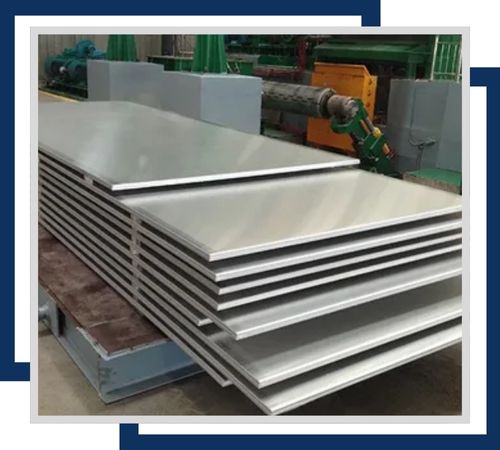

They come in dimensions ranging from 3mm up to 150mm thick, and up to 2000mm wide. Hot-rolled sheets are excellent in strength, ideal for structural applications.

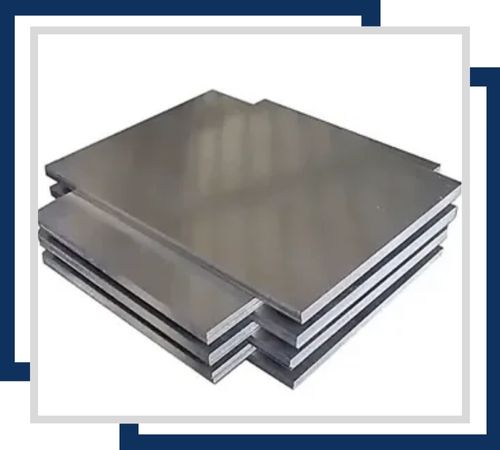

Cold-rolled sheets have a thickness of between 0.3mm to 6mm, and their widths can reach up to 1500mm. They can give a fine surface finish, as well as very accurate dimensioning, perfect for precision applications and fabrication.

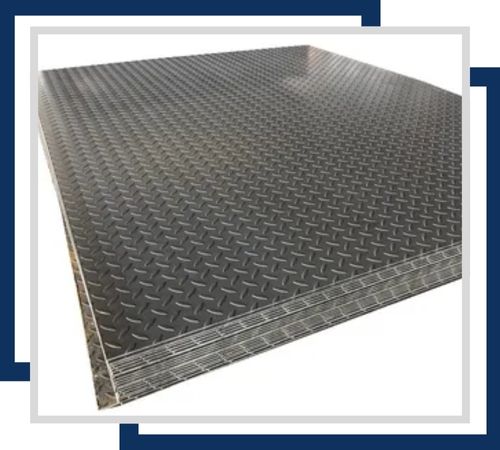

These sheets range from 1mm to 12mm in thickness. The texture on them is what gives them their anti-slip surface. They are mainly used in flooring and industrial platforms.

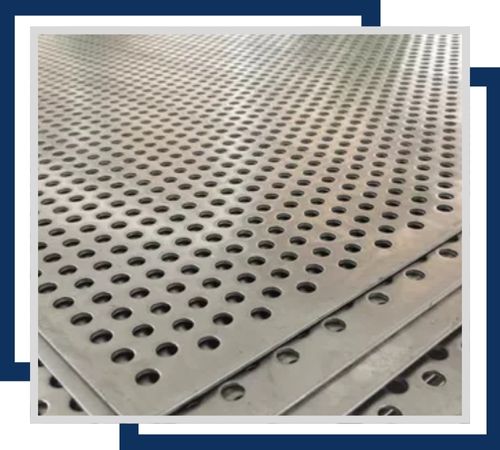

These sheets mainly range between 0.3mm and 12mm in thickness. Due to the uniform perforations, they are widely applied in applications such as filtration, ventilation, and decorative purposes.

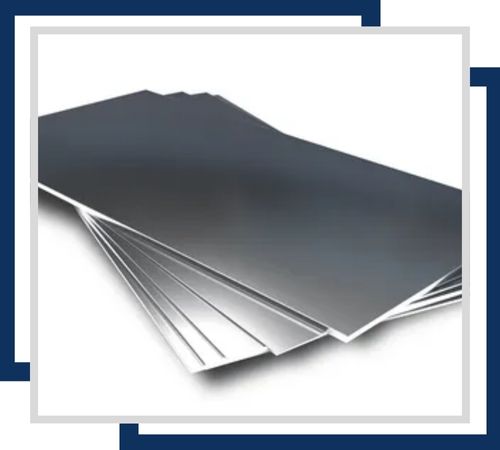

The range in thicknesses for these thin sheets varies from 0.05mm to 3mm and finds applications in precise adjustments and alignment during a machinery component or structural component.

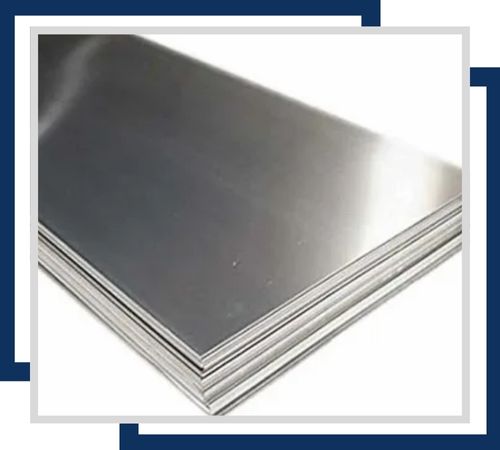

Polished sheets are available from a thickness of 0.3mm to 6mm, providing a reflective finish, and find applications in aesthetic applications and architectural designs.
Shashank Stainless offers an excellent customer experience with strong documentation for our premium Stainless Steel 304H Sheets and Plates. The necessary documents that accompany our product are commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-accredited lab test reports. These documents prove the authenticity and exceptional quality of our products, thereby building trust and confidence among our esteemed customers. In addition, we offer a variety of test certificates with our Stainless Steel 304H Sheets and Plates, including MTC according to EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates. These accreditations emphasize our commitment to customer satisfaction and our relentless drive for excellence in product quality.
Stainless Steel 304H sheet and plate has good strength and excellent corrosion resistance for high-temperature applications. Major applications include heat exchangers, boilers, pressure vessels, and furnaces, especially in petrochemical, chemical processing, and power generation industries. It is used in the aerospace and marine sectors to manufacture exhaust systems, exhaust manifolds, and structural components. Its good resistance to elevated temperatures and strength in structural conditions make it the best for applications under demanding environments.
